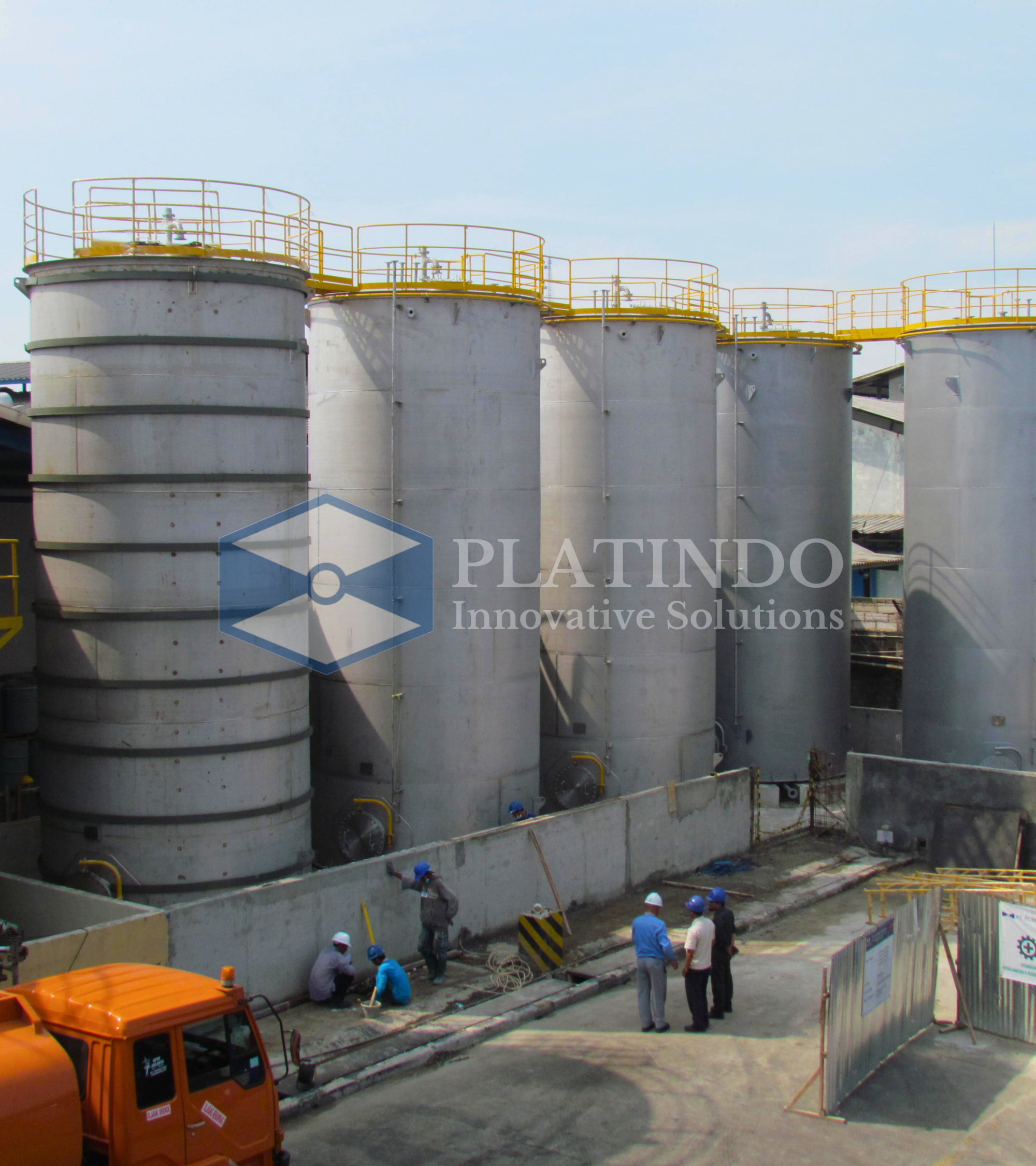

Storage tanks are essential across many industries, serving as crucial containers for storing materials under specific conditions. These tanks are carefully designed to ensure your materials stay in top shape. Plus, we offer a variety of tanks tailored to different needs, with options to customize.
These tanks are key players in maintaining product quality throughout the production process. By creating controlled environments, they regulate factors like temperature, humidity, and exposure to outside contaminants. This helps prevent degradation, spoilage, or contamination, ensuring the final products meet required standards.
We’re experts in designing, building, and installing tanks made from both carbon steel and stainless steel. Our range includes silo tanks, fuel tanks, mobile tanks, and various process tanks like reactor tanks and heating/cooling tanks.
Storage tanks contributes to maintaining the quality and integrity of products throughout the production cycle. By providing a controlled environment, these tanks can regulate factors such as temperature, humidity, and exposure to external contaminants. This helps prevent degradation, spoilage, or contamination of materials, ensuring that the final products meet the required standards of quality and safety.
We have designed, fabricated, and installed tanks using both carbon steel and stainless steel materials. Our range of tanks includes silo tanks, fuel tanks, movable tanks, and not only storage tanks but also process tanks such as reactor tanks, agitator tanks, heating/cooling tanks, etc.
Storage tanks are critical in various industries where materials need to be stored in specific conditions. These tanks are well-engineered to ensure that your materials remain in their optimal state. Additionally, we offer a range of tanks tailored to different applications, with customization options available.
Storage tanks contributes to maintaining the quality and integrity of products throughout the production cycle. By providing a controlled environment, these tanks can regulate factors such as temperature, humidity, and exposure to external contaminants. This helps prevent degradation, spoilage, or contamination of materials, ensuring that the final products meet the required standards of quality and safety.
We have designed, fabricated, and installed tanks using both carbon steel and stainless steel materials. Our range of tanks includes silo tanks, fuel tanks, movable tanks, and not only storage tanks but also process tanks such as reactor tanks, agitator tanks, heating/cooling tanks, etc.
Storage tanks are critical in various industries where materials need to be stored in specific conditions. These tanks are well-engineered to ensure that your materials remain in their optimal state. Additionally, we offer a range of tanks tailored to different applications, with customization options available.
Storage tanks contributes to maintaining the quality and integrity of products throughout the production cycle. By providing a controlled environment, these tanks can regulate factors such as temperature, humidity, and exposure to external contaminants. This helps prevent degradation, spoilage, or contamination of materials, ensuring that the final products meet the required standards of quality and safety.
We have designed, fabricated, and installed tanks using both carbon steel and stainless steel materials. Our range of tanks includes silo tanks, fuel tanks, movable tanks, and not only storage tanks but also process tanks such as reactor tanks, agitator tanks, heating/cooling tanks, etc.
Dimension
Material
Finishing
Shell
Lips tank
Accessories
: Ø 3800 x H 8800 mm (Approximate )
: Stainless Steel / SUS-304
: Inside – Outside, Chemicals cleaning / welding line
: Plate
: Angle bar
: ◊ Inlet nozzle Flange with internal pipe & elbow
◊ Outlet nozzle Flange
◊ Sample Valve nozzle Flange
◊ Temperature gauge nozzle Flange
◊ Drain nozzle Flange
◊ Top manhole c/w emergency vent
◊ Side manhole with cover & davit
◊ Venting Flange with goose neck & bug screen
◊ Lifting lugs / SS-400
◊ Ladder & railing / SS-400
Dimension : Ø 3800 x H 8800 mm (Approximate )
Material : Stainless Steel SUS 304
Finishing : Inside – Outside, Chemicals cleaning / welding line
Shell : Plate
Lips tank : Angle bar
Accessories :
◊ Inlet nozzle Flange with internal pipe & elbow
◊ Outlet nozzle Flange
◊ Sample Valve nozzle Flange
◊ Temperature gauge nozzle Flange
◊ Drain nozzle Flange
◊ Top manhole c/w emergency vent
◊ Side manhole with cover & davit
◊ Venting Flange with goose neck & bug screen
◊ Lifting lugs / SS-400
◊ Ladder & railing / SS-400
Type
Dimension
Material
Finishing
Ring
Support
Bracket
Platform
Accessories
: Vertical cylinder
: Ø 3500 x H 17480 mm (approximate)
: Mild Steel / ST-37
: Outside, Sandblasting preparation and
Painting with epoxy primer & top coat, Polyurethane
: Angle bar
Channel U
: Pipe
Channel U
Plate
: Plate
: Mild Steel / ST-37
: ◊ Feeding pipe
◊ Air ring pipe
◊ Flap Valve
◊ Pressure relief Valve
◊ Stair
◊ Hand rail
◊ Manhole
◊ Top cover
◊ Lifting lugs
Type : Vertical cylinder
Dimension : Ø 3500 x H 17480 mm (approximate)
Material : Mild Steel / ST-37
Finishing : Outside, Sandblasting preparation and Painting with epoxy primer & top coat, Polyurethane
Ring : Angle bar, Channel U
Support : Pipe, Channel U, Plate
Bracket : Plate
Platform : Mild Steel / ST-37
Accessories :
◊ Feeding pipe
◊ Air ring pipe
◊ Flap Valve
◊ Pressure relief Valve
◊ Stair
◊ Hand rail
◊ Manhole
◊ Top cover
◊ Lifting lugs
Type
Dimension
Material
Finishing
Shell
Bottom
Top cover
Lips Tank
Leg support
Accessories
: Cylinder / Horizontal
: Ø 1000 x L 2400 mm (approximate)
: Mild steel / SS-400
: Outside, painting with epoxy coating
: Plate 3 mm
: Plate 3 mm
: Plate 3 mm
: Angle bar 40x40x4 mm
: Pipe
: ◊ Inlet nozzle, flange
◊ Outlet , thread Ball valve
◊ Spare nozzle, flange
◊ Level indicator , transparent pipe
◊ Outside ladder
Type : Cylinder / Horizontal
Dimension : Ø 1000 x L 2400 mm (approximate)
Material : Mild steel / SS-400
Finishing : Outside, painting with epoxy coating
Shell : Plate 3 mm
Bottom : Plate 3 mm
Top cover : Plate 3 mm
Lips Tank : Angle bar 40x40x4 mm
Leg support : Pipe
Accessories : ◊ Inlet nozzle, flange
◊ Outlet , thread Ball valve
◊ Spare nozzle, flange
◊ Level indicator , transparent pipe
◊ Outside ladder
Type
Capacity
Dimension
Material
Finishing
Agitator
Accessories
: Vertical / Cylinder / Close
: 2.000 Liter
: Ø 1200 x H 2295 x HT 2627 mm (approximate)
: Stainless Steel / SUS 304
: Inside, polish mirror
Outside, polish grade #220
: Motor 5,5 KW / 1450 Rpm / 380 V / Explosion Proof
: ◊ Rotary spray ball Ø 1-1
◊ Ball valve flange/Pneumatic Actuator/Double Act
◊ Sampling valve / thread connection
◊ Lighting lamp AC-220V / explosion proof
◊ Breather valve with flame arrestor
◊ Dehydrating breather moisture absorber
◊ Pressure gauge 0-10 bar
◊ Temperature gauge 0-200°C
Type : Vertical / Cylinder / Close
Capacity : 2.000 Liter
Dimension : Ø 1200 x H 2295 x HT 2627 mm
(approximate)
Material : Stainless Steel / SUS 304
Finishing : Inside, polish mirror
Outside, polish grade #220
Agitator : Motor 5,5 KW / 1450 Rpm / 380
V / Explosion Proof
Accessories :
◊ Rotary spray ball Ø 1-1
◊ Ball valve flange/Pneumatic Actuator/Double Act
◊ Sampling valve / thread connection
◊ Lighting lamp AC-220V / explosion proof
◊ Breather valve with flame arrestor
◊ Dehydrating breather moisture absorber
◊ Pressure gauge 0-10 bar
◊ Temperature gauge 0-200°C

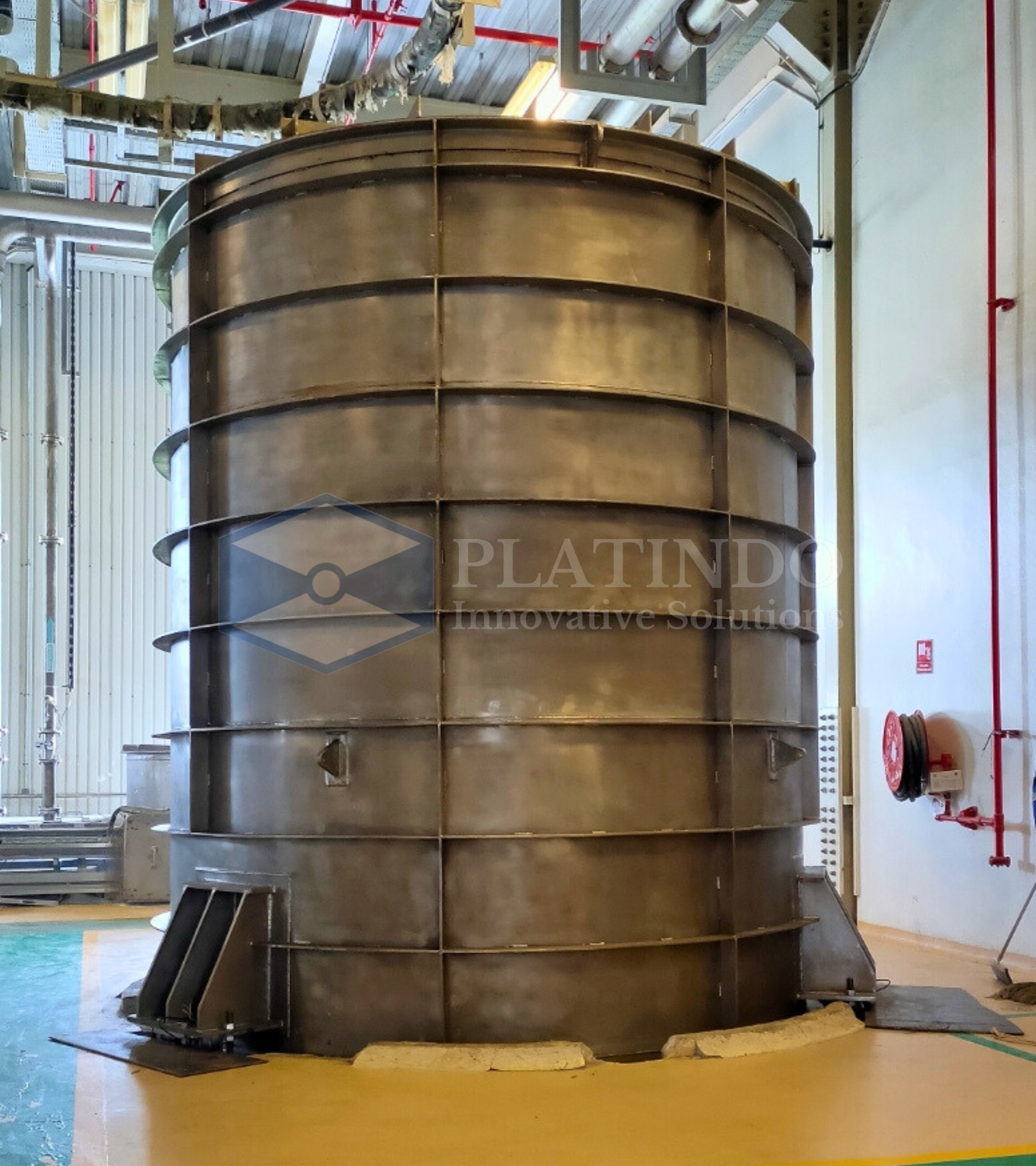

Dimension
Capacity
Material
Finishing
Shell
Stiffener top plate
Reinforce bracket
Bracket
Top ring
Accessories
: Ø 4000 x H 4500 x HT 6606 mm (approximate)
: 66.500 Liter
: Stainless Steel / SUS-304L
: Inside, polish mirror
Outside, polish grade #220
: Plate 6 mm
: Flat bar
: Plate
: Plate
: Angle bar 75x75x7 mm
: ◊ Product inlet
◊ Product outlet , with square flange
◊ Level switch nozzle with plug – 2 pcs
◊ Nozzle level transmitter, flange
◊ Nozzle temperature transmitter, flange + blind
◊ Spare nozzle with plug – 2 pcs
◊ Inspector door
◊ Side manhole, flange
◊ Lifting lugs
Dimension : Ø 4000 x H 4500 x HT 6606 mm (approximate)
Capacity : 66.500 Liter
Material : Stainless Steel / SUS-304L
Finishing : Inside, polish mirror
Outside, polish grade #220
Shell : Plate 6 mm
Stiffener top plate : Flat bar
Reinforce bracket : Plate
Bracket : Plate
Top ring : Angle bar 75x75x7 mm
Accessories :
◊ Product inlet
◊ Product outlet , with square flange
◊ Level switch nozzle with plug – 2 pcs
◊ Nozzle level transmitter, flange
◊ Nozzle temperature transmitter, flange + blind
◊ Spare nozzle with plug – 2 pcs
◊ Inspector door
◊ Side manhole, flange
◊ Lifting lugs
Dimension
Finishing
Sandblasting
Material
Shell
Legs support
Accessories
: Ø 2.910 x L 13.700 mm (approximate)
: Outside, painted with Hempadur Mastic & top
: Inside & outside Sandblasting
: Mild Steel / SS-400
: Plate 6 mm
: WF 200 x 100 x 5,5 x 8
Plate 10 mm
: ◊ Manhole
◊ Level indicator
◊ Breathing valve
◊ Lifting lug
◊ Inlet nozzle, flange
◊ Outlet nozzle, flange
Dimension : Ø 2.910 x L 13.700 mm (approximate)
Finishing : Outside, painted with Hempadur Mastic & top
Sandblasting : Inside & outside Sandblasting
Material : Mild Steel / SS-400
Shell : Plate 6 mm
Legs support : WF 200 x 100 x 5,5 x 8
Plate 10 mm
Accessories :
◊ Manhole
◊ Level indicator
◊ Breathing valve
◊ Lifting lug
◊ Inlet nozzle, flange
◊ Outlet nozzle, flange

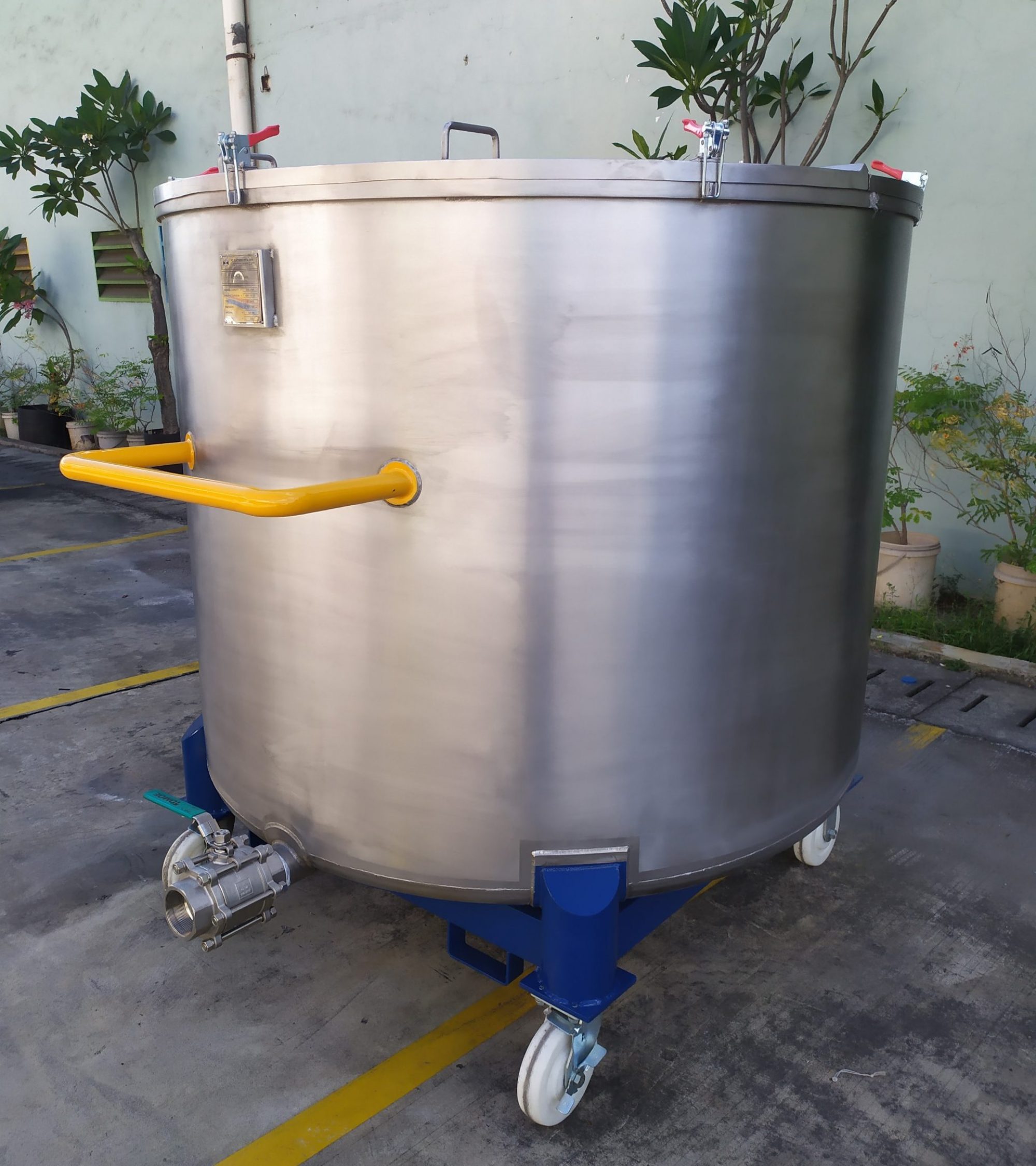

Type
Dimension
Material
Finishing
Shell
Bottom
Lips tank
Accessories
: DT-2500-S
: Ø 1450 x H 1574 mm (approximate)
: Stainless Steel / SUS-304 (nickel 8%) – 1B
: Inside – Outside, polish grade #220
: Plate 4 mm
: Plate 4 mm
: Flat bar T= 10 x 70 mm
: ◊ Outlet , Thread Ball valve Ø 3” / Bronze KITZ
◊ Guard for outlet / SS-400 / Painted
◊ Tank handle / SS-400 / Painted
◊ Tank grounding
◊ Bottom frame SS-400 with nylon wheel / Hammer (Swivel Brake & Rigid)
Type : DT-2500-S
Dimension : Ø 1450 x H 1574 mm (approximate)
Material : Stainless Steel SUS-304 (nickel 8%)
Finishing : Inside – Outside, polish grade #220
Shell : Plate 4 mm
Bottom : Plate 4 mm
Lips tank : Flat bar t : 10 x 70 mm
Accessories :
◊ Outlet , Thread Ball valve Ø 3” / Bronze KITZ
◊ Guard for outlet / SS-400 / Painted
◊ Tank handle / SS-400 / Painted
◊ Tank grounding
◊ Bottom frame SS-400 with nylon wheel / Hammer (Swivel Brake & Rigid)
Capacity
Dimension
Type
Material
Finishing
Reinforce
Tank baffle
Roof frame
Top & Bottom ring
Legs
Support
Bracing
Base plate
Outer ladder
Handrail
Catwalk
Accessories
: 120 M3
: Ø 4960 x H 8000 x HT 12000 mm (approximate)
: Vertical Cylinder with Conical Bottom
: Stainless steel / SUS-304
: Inside – outside, welding line & Chemical cleaning for material SUS 304
Painting with epoxy primer & top coat for material Mild Steel / SS-400
: Plate / SUS-304
: Plate / SUS-304
: Angle bar / SS-400
: Angle bar / SS-400
: H-beam / SS-400
: WF / SS-400
: WF / SS-400
: Plate / SS-400
: Pipe CS , Angle bar & guard (1 set) – for 3 units tank
: Pipe CS
: Channel UNP or WF with hand railing / SS-400
: ◊ Outlet, Ball valve flange manual operation
◊ Side manhole
◊ Bolt, nut, & washer / contact product SUS-304
Capacity : 120 M3
Dimension : Ø 4960 x H 8000 x HT 12000 mm (approximate)
Type : Vertical Cylinder with Conical Bottom
Material : Stainless steel / SUS-304
Finishing : Inside – outside, welding line & Chemical cleaning for material SUS 304
Painting with epoxy primer & top coat for material Mild Steel / SS-400
Reinforce : Plate / SUS-304
Tank baffle : Plate / SUS-304
Roof frame : Angle bar / SS-400
Top & Bottom ring : Angle bar / SS-400
Legs : H-beam / SS-400
Support : WF / SS-400
Bracing : WF / SS-400
Base plate : Plate / SS-400
Outer ladder : Pipe CS , Angle bar & guard (1 set) – for 3 units tank
Handrail : Pipe CS
Catwalk : Channel UNP or WF with hand railing / SS-400
Accessories :
◊ Outlet, Ball valve flange manual operation
◊ Side manhole
◊ Bolt, nut, & washer / contact product SUS-304

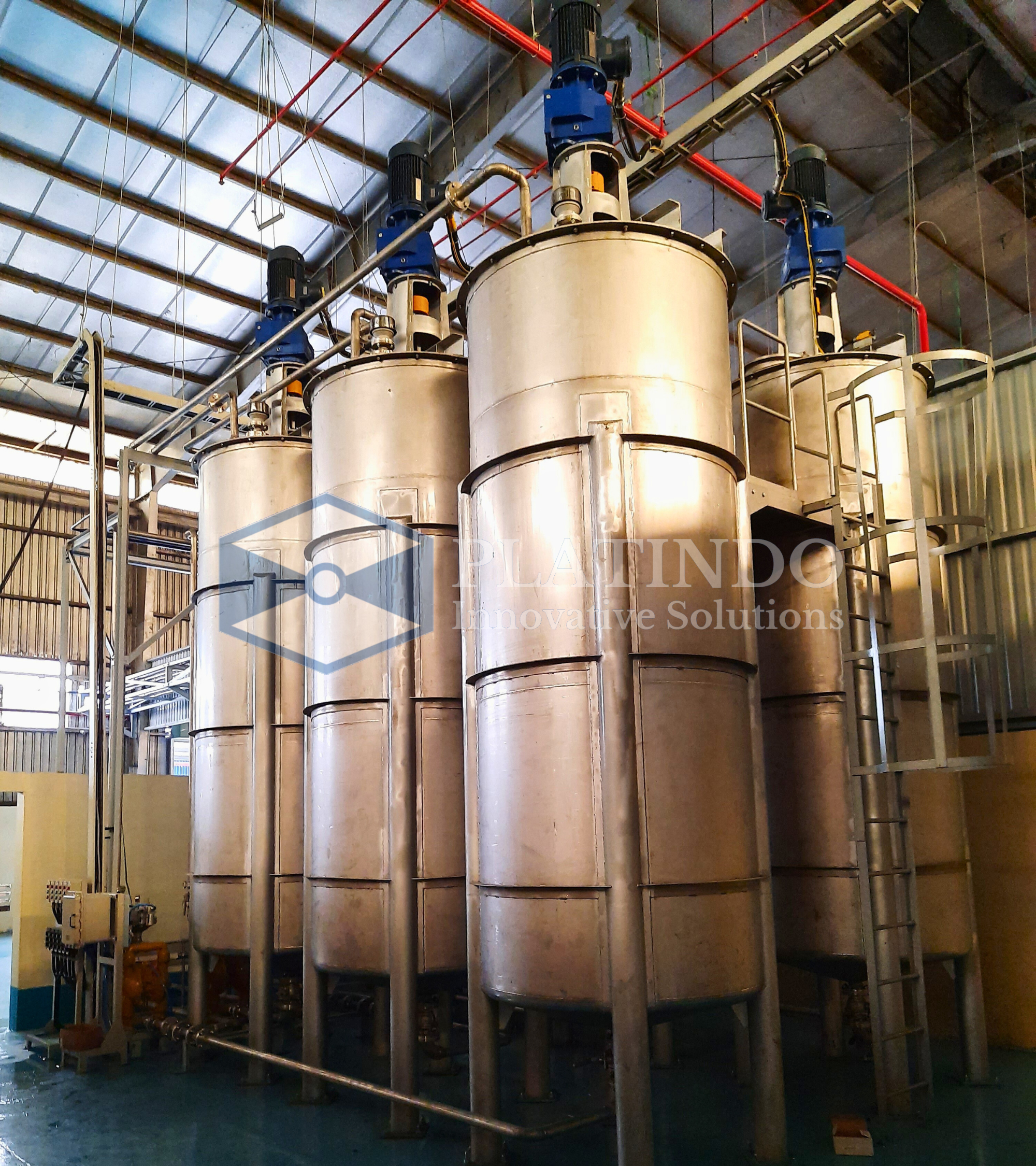

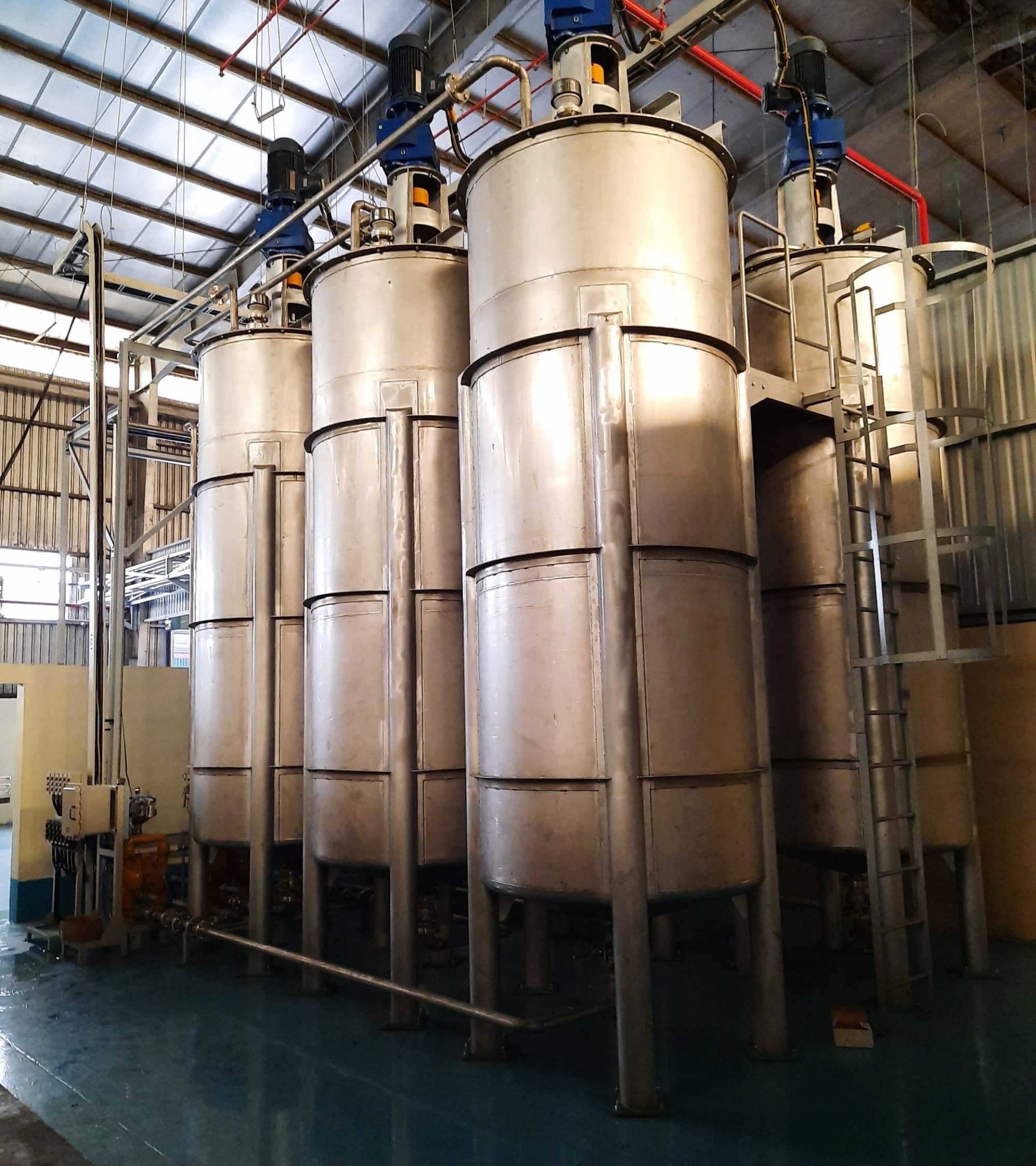

Type
Dimension
Material
Finishing
Shell
Legs support
Agitator
Shaft
Blade
Accessories
: Vertical cylinder
: Ø 1875 x H 2225 mm x HT 2555 mm (approximate)
: Stainless steel / SUS-316
: Inside , polish mirror
Outside , polish Hair Line
: Plate
: Bending plate / SUS-304
: Gear motor 7,5 HP / Output speed ~ 100 RPM / 380 V
: Stainless steel / SUS-316
: Paddle blade / SUS-316 / 2 stage
: ◊ Inlet , union sanitary / SUS-316
◊ Outlet , union sanitary / SUS-316
◊ Nozzle spray / SUS-316
◊ Top manhole
◊ Sight glass
◊ Stuffing box
◊ Inside ladder / knock down / SUS-304
Type : Vertical cylinder
Dimension : Ø 1875 x H 2225 mm x HT 2555 mm (approximate)
Material : Stainless steel / SUS-316
Finishing : Inside , polish mirror
Outside , polish Hair Line
Shell : Plate
Legs support : Bending plate 6 mm / SUS-304
Agitator : Gear motor 7,5 HP / Output speed ~ 100 RPM / 380 V
Shaft : Stainless steel / SUS-316
Blade : Paddle blade / SUS-316 / 2 stage
Accessories :
◊ Inlet , union sanitary / SUS-316
◊ Outlet , union sanitary / SUS-316
◊ Nozzle spray / SUS-316
◊ Top manhole
◊ Sight glass
◊ Stuffing box
◊ Inside ladder / knock down / SUS-304
Dimension
Material
Finishing
Top Cover
Legs support
Jacket Tank
Heater
Agitator
Blade
Stair
Accessories
: Ø 650 x H 800 mm (approximate)
: Stainless steel SUS 304 ( Nickel 8%)
: Inside, polish mirror grade #400 for material SUS 30
Outside, polish hairline for material SUS 304
: Swing Type
: Pipe / SS-400
: Stainless steel / SUS-304
: Immersion Heating 7,5 KW / 2 unit
: Helical gear motor / vertical / 1 HP / Non Ex-proof
: Paddle blade w/ bushing
: L 1100 x W 600 x H 1000 mm / Mild Steel / SS-400
: ◊ Inlet nozzle, flange
◊ Outlet , flange ball valve
◊ Spare nozzle , Flange
◊ Sight glass / tempered Handle 0-200°C
Dimension : Ø 650 x H 800 mm (approximate)
Material : Stainless steel SUS 304 ( Nickel 8%)
Finishing : Inside, polish mirror grade #400 for material SUS 30
Outside, polish hairline for material SUS 304
Top Cover : Swing Type
Legs support : Pipe / SS-400
Jacket Tank : Stainless steel / SUS-304
Heater : Immersion Heating 7,5 KW / 2 unit
Agitator : Helical gear motor / vertical / 1 HP / Non Ex-proof
Blade : Paddle blade w/ bushing
Stair : L 1100 x W 600 x H 1000 mm / Mild Steel / SS-400
Accessories :
◊ Inlet nozzle, flange
◊ Outlet , flange ball valve
◊ Spare nozzle , Flange
◊ Sight glass / tempered Handle 0-200°C
Dimension
Material
Finishing
Shell
Top plate
Bottom plate
Lips tank
Reinforcement
Accessories
: Ø 5000 x H 3600 mm (approximate)
: Mild Steel / SS-400
: Outside, painting with epoxy top coat
: Plate / SS-400
: Plate / SS-400
: Plate / SS-400
: Angle bar
: Angle bar
: ◊ Inlet – Outlet nozzle Flange
◊ Spare nozzle Flange
◊ Venting nozzle
◊ Top manhole
◊ Lifting lugs
◊ Inside – outside Ladder
◊ Level indicator / analog scale – floating system

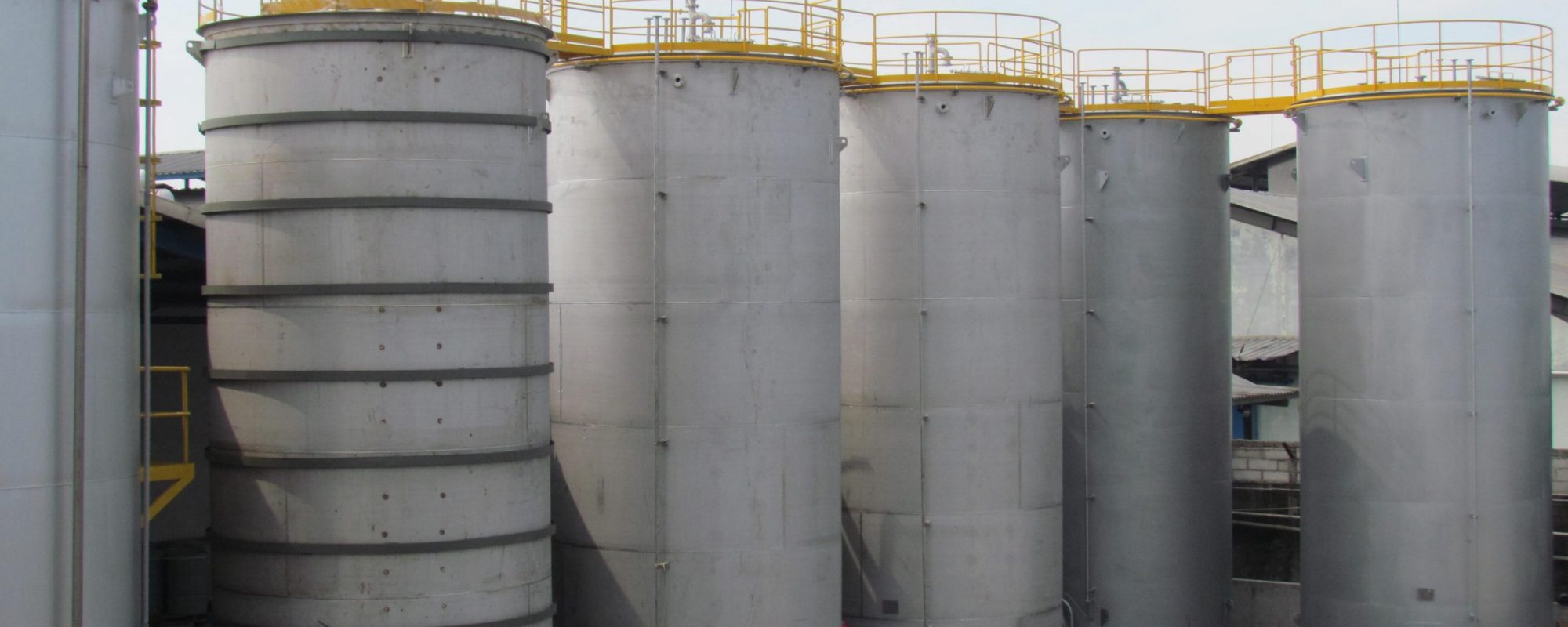

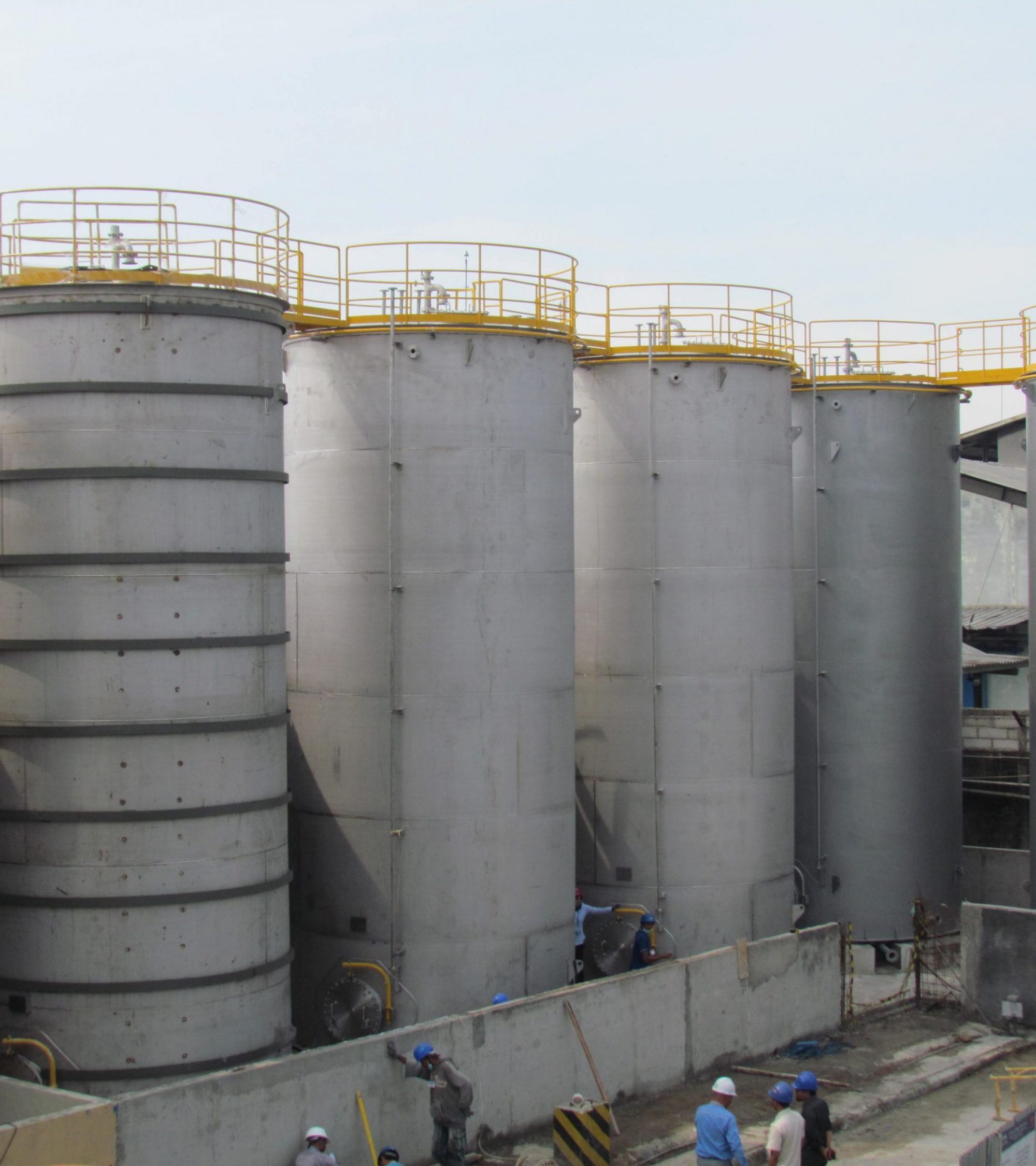

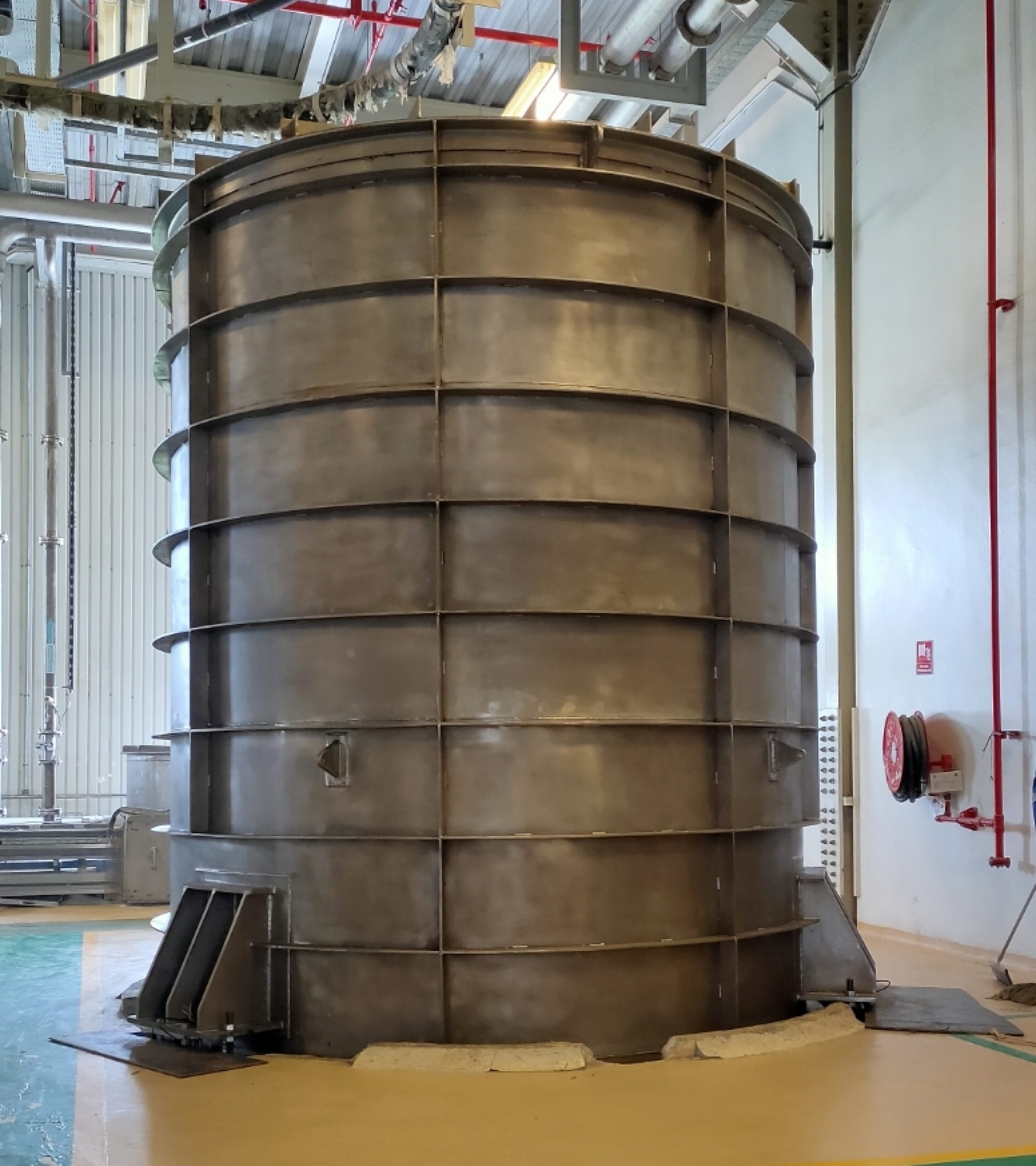

Dimension : Ø 5000 x H 3600 mm (approximate)
Material : Mild Steel / SS-400
Finishing : Outside, painting with epoxy top coat
Shell : Plate / SS-400
Top plate : Plate / SS-400
Bottom plate : Plate / SS-400
Lips tank : Angle bar
Reinforcement : Angle bar
Accessories :
◊ Inlet – Outlet nozzle Flange
◊ Spare nozzle Flange
◊ Venting nozzle
◊ Top manhole
◊ Lifting lugs
◊ Inside – outside Ladder
◊ Level indicator / analog scale – floating system
1. REACTOR TANK 1000 L
Type
Capacity
Dimension
Material
Finishing
Jacket tank
Insulation
Condenser
Agitator
Gearbox
Platform
Accessories
: Cylinder / dished end / Platform mounted
: 1000 L
: Ø 1000 x H 1500 mm (Approximate)
: Stainless steel SUS-316 / Teflon Lining
: Inside, polish mirror
Outside, Pickling / Chemical cleaning
: Plate 3 mm / SUS-304
: Rock wool
Frame / flat bar / SS-400
Cover / plate / SS-400
: Casing / Pipe / SUS-316
Pipe Tubing / SUS-316
: Motor 1 HP / 1500 RPM / 380 V / Explosion proof
: Gear box 5 HP / output Speed ~ 100 RPM
: L 2000 x W 2000 x H 2900 mm ( approximate) / Mild Steel / SS-400
: ◊ Outlet, bottom Valve for product
◊ Inlet – outlet Ball Valve / SUS-304 for jacket
◊ Inlet nozzle, Flange
◊ Spare nozzle, Flange
◊ Nozzle thread for Pressure Indicator
◊ Nozzle thread for Thermo Indicator
◊ Venting / SUS-316
◊ Manhole
◊ Sight glass & light glass
◊ Stuffing box / SUS-316
◊ Lifting lug
2. FIXED MIXER 1 HP / Ex-Proof
Drive motor
Voltage
Shaft
Blade
Shaft connection
Frame
Base frame
Frame motor
Finishing
Accessories
: Cylinder / dished end / Platform mounted
: 380 V, 3 phase, 50 Hz
: SUS-316
: Trifoil blade / SUS-316
: Moment coupling SUS-316
: SS-400
: SS-400
: Plate
: Painting with epoxy top coat
: Adjuster foots / galvanize SUS-316
1. REACTOR TANK 1000 L
Type : Cylinder / dished end / Platform mounted
Capacity : 1000 L
Dimension : Ø 1000 x H 1500 mm (Approximate)
Material : Stainless steel SUS-316 / Teflon Lining
Finishing : Inside, polish mirror
Outside, Pickling / Chemical cleaning
Jacket tank : Plate 3 mm / SUS-304
Insulation : Rock wool
Frame / flat bar / SS-400
Cover / plate / SS-400
Condenser : Casing / Pipe / SUS-316
Pipe Tubing / SUS-316
Agitator : Motor 1 HP / 1500 RPM / 380 V / Explosion proof
Gearbox : Gear box 5 HP / output Speed ~ 100 RPM
Platform : L 2000 x W 2000 x H 2900 mm ( approximate) / Mild Steel / SS-400
Accessories :
◊ Outlet, bottom Valve for product
◊ Inlet – outlet Ball Valve / SUS-304 for jacket
◊ Inlet nozzle, Flange
◊ Spare nozzle, Flange
◊ Nozzle thread for Pressure Indicator
◊ Nozzle thread for Thermo Indicator
◊ Venting / SUS-316
◊ Manhole
◊ Sight glass & light glass
◊ Stuffing box / SUS-316
◊ Lifting lug
2. FIXED MIXER 1 HP / Ex-Proof
Drive motor : Cylinder / dished end / Platform mounted
Voltage : 380 V, 3 phase, 50 Hz
Shaft : SUS-316
Blade : Trifoil blade / SUS-316
Shaft connection : Moment coupling SUS-316
Frame : SS-400
Base frame : SS-400
Frame motor : Painting with epoxy top coat Finishing
