MIXER

    Industrial mixer is a specialized machine widely used across various industries to combine, blend, or mix different materials or substances. These mixers are purposefully crafted to handle large volumes efficiently, delivering reliable and consistent mixing outcomes.

    Industrial mixing is vital for ensuring thorough blending of materials, resulting in a uniform mixture. This process is indispensable in industries like food and beverage, cosmetics, and chemicals, where product uniformity and consistency are paramount. Achieving homogeneous mixing is critical for maintaining product quality, ensuring the proper distribution of additives or ingredients, and eliminating variations or inconsistencies in the final product.

    We excel in manufacturing custom mixers tailored to specific requirements. Our range includes homogenizers, agitators, lab mixers, ribbon mixers, ball mills, and more, each designed to meet the diverse needs of our clients with precision and efficiency.

Home / Product / Mixer

MIXER

    Industrial mixer is a specialized machine widely used across various industries to combine, blend, or mix different materials or substances. These mixers are purposefully crafted to handle large volumes efficiently, delivering reliable and consistent mixing outcomes.

    Industrial mixing is vital for ensuring thorough blending of materials, resulting in a uniform mixture. This process is indispensable in industries like food and beverage, cosmetics, and chemicals, where product uniformity and consistency are paramount. Achieving homogeneous mixing is critical for maintaining product quality, ensuring the proper distribution of additives or ingredients, and eliminating variations or inconsistencies in the final product.

    We excel in manufacturing custom mixers tailored to specific requirements. Our range includes homogenizers, agitators, lab mixers, ribbon mixers, ball mills, and more, each designed to meet the diverse needs of our clients with precision and efficiency.

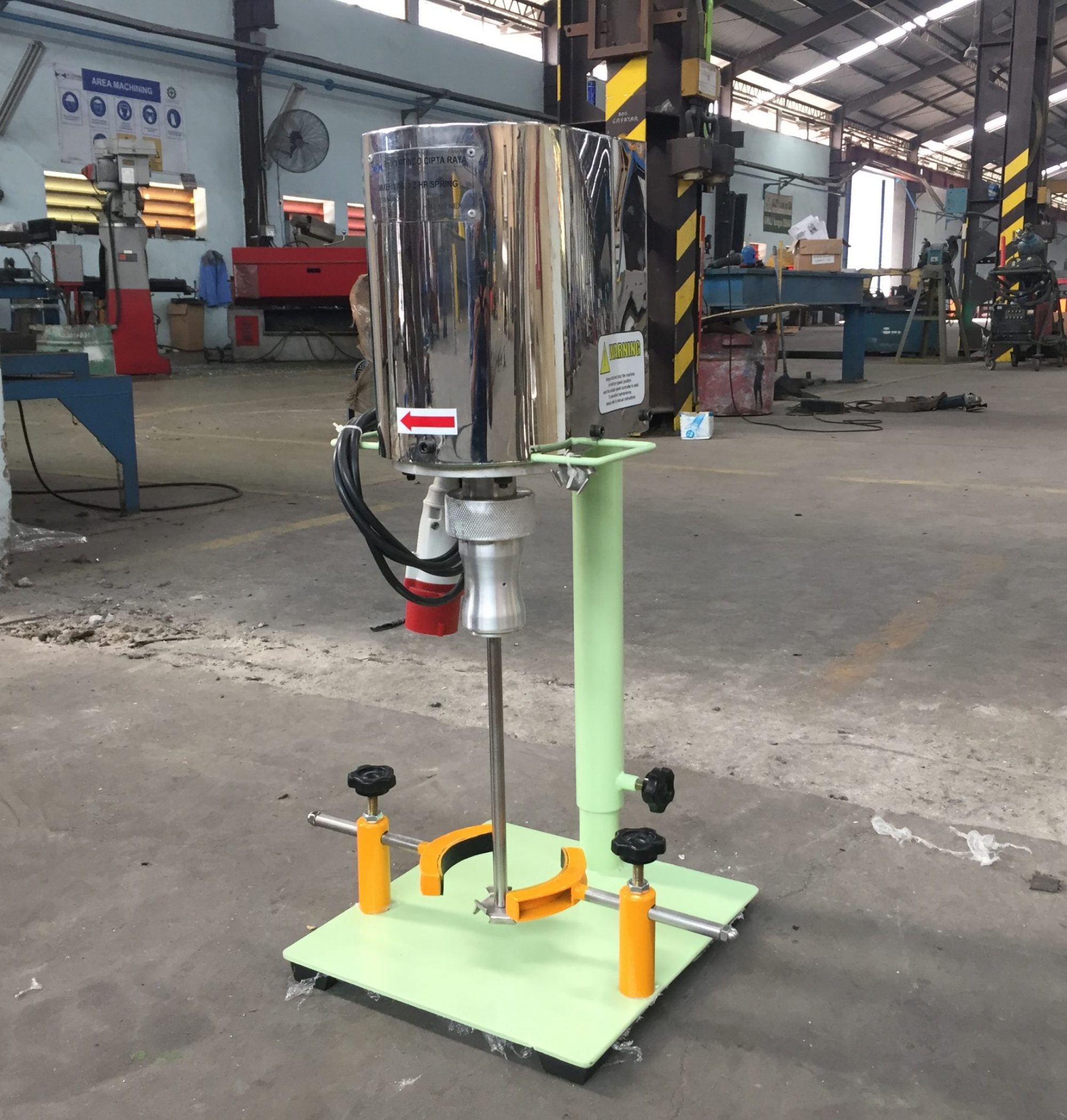

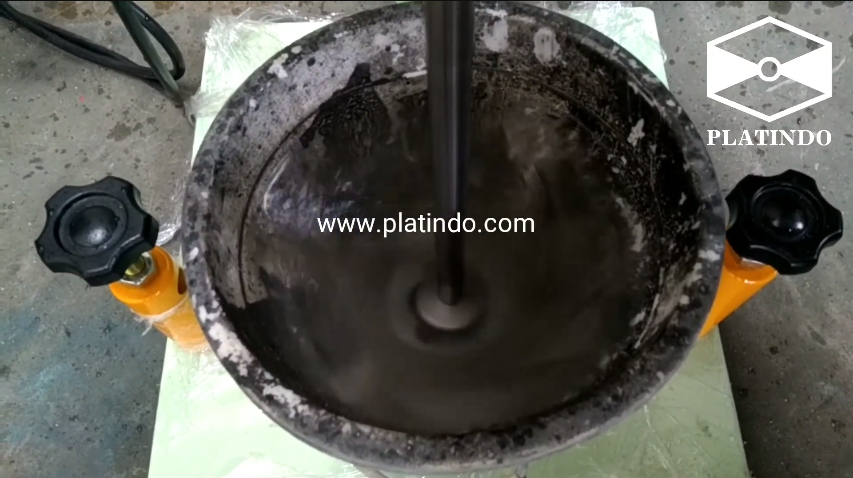

LABORATORY HSD MIXER

LAB HSD Mixer 1/2 HP

Bekasi, West Java

Type

Capacity

Drive motor

Output speed

Shaft

Disc blade

Lifting system

Frame structure

Base frame
Control panel

:   LAB-HSD -1/2-NEX-SP

:   5 Liters

:  1⁄2 HP, 3000 Rpm / Non ex-proof

:  0 ~ 3000 Rpm with inverter

:  Shaft Ø 12 mm / SUS-304 c/w coupling

:  Toothed disc Ø 40mm, Ø 50mm / SUS-304

:  Manual (spring system)

:  Mild Steel / SS-400 / Painted

:  Mild Steel / SS-400 / Painted

:  ◊  Box panel
   ◊  Speed regulator with inverter
   ◊  Potensio meter & Emergency stop

Type :  LAB-HSD -1/2-NEX-SP

Drive motor :  1⁄2 HP, 3000 RPM / Non ex-proof

Output speed :  0 ~ 3000 RPM with inverter

Shaft :  Shaft Ø 12 mm / SUS-304 c/w coupling

Disc blade :  Toothed disc Ø 40mm, Ø 50mm / SUS-304

Lifting system :  Manual (spring system)

Frame structure :  Mild Steel / SS-400 / Painted

Base frame :  Mild Steel / SS-400 / Painted
Control panel :

   ◊  Box panel
   ◊  Speed regulator with inverter
   ◊  Potensio meter & Emergency stop

HSD LAB MIXER

LABORATORY HSD MIXER 2 HP / EX-PROOF

Cikarang, West Java

Max capacity
Type
Drive motor
Voltage
Speed
Shaft
Blade
Lifting system
Frame structure
Screw housing
Base frame
Frame Motor
Base Tank
Bearing Housing
Finishing
Control panel

:  5 – 20 Liter

:  Manual Lifting System

:  2 HP, 3000 RPM, Ex – proof

:  380 V, 3 phase, 50 Hz

:  0 ~ 3000 RPM with Inverter 2 HP

:  Shaft Ø 20 mm / SUS-304

:  Dissolver Blade Ø 75 mm & Ø 100 mm

:  Manual with screw mechanism



:  Pipe Ø 4” / SS-400

:  Square pipe 50×50 mm / SS-400

:  Mild steel / SS-400

:  Stainless steel / SUS-304

:  Mild steel / SS-400

:  Painting with epoxy primer & top coat

:  ◊  Box panel

   ◊  Indicator lamp

   ◊  Potensio meter, digital

   ◊  RPM meter & EMG stop

   ◊  Sealing fitting / Ex-proof

   ◊  Motor & control cables

Max capacity :  5 – 20 Liter
Type :  Manual Lifting System
Drive motor :  2 HP, 3000 RPM, Ex – proof
Voltage :  380 V, 3 phase, 50 Hz
Speed :  0 ~ 3000 RPM with Inverter 2 HP

Shaft :  Shaft Ø 20 mm / SUS-304
Blade :  Dissolver Blade Ø 75 mm & Ø 100 mm
Lifting system :  Manual with screw mechanism
Frame structure
Screw housing :  Pipe Ø 4” / SS-400
Base frame :  Square pipe 50×50 mm / SS-400
Frame Motor :  Mild steel / SS-400
Base Tank :  Stainless steel / SUS-304
Bearing Housing :  Mild steel / SS-400
Finishing :  Painting with epoxy primer & top coat
Control panel :

   ◊  Box panel

   ◊  Indicator lamp

   ◊  Potensio meter, digital

   ◊  RPM meter & EMG stop

   ◊  Sealing fitting / Ex-proof

   ◊  Motor & control cables

HDS MIXER

Hydraulic Mixer 15 Hp / Ex-Proof

Tangerang, Banten

Type
Material
Finishing
Drive motor
Voltage
End speed
Shaft
Blade
Lifting
Power pack
Tank clamping
Control panel

:   HSD-15 HEX – Rotated operation

:   Mild steel SS-400

:   Painted with epoxy top coat

:   15 HP, 1500 RPM / explosion Proof

:   380 V, 3 Phase, 50 Hz

:   0 ~ 1450 RPM with inverter 15 HP

:   Ø 2” / SUS 304 with housing bearing system

:   Dissolver blade Ø 300 mm / SUS 304 with disc holder

:   Single acting cylinder hydraulic

:   Included with explosion proof motor

:   Mild steel / SS-400

:   ◊ Box panel (in switch room)
    ◊ Speed regulator with inverter 15 HP / LG
    ◊ Potensio meter + Emergency button / Ex-proof
    ◊ On / Off push button / Ex-proof
    ◊ Safety / Limit switch for UP-DOWN
    ◊ Electric Installation ±15 mtr

Type :   HSD-15 HEX – Rotated operation
Material :   Mild steel SS-400
Finishing :   Painted with epoxy top coat
Drive motor :   15 HP, 1500 RPM / explosion Proof
Voltage :   380 V, 3 Phase, 50 Hz
End speed :   0 ~ 1450 RPM with inverter 15 HP
Shaft :   Ø 2” / SUS 304 with housing bearing system
Blade :   Dissolver blade Ø 300 mm / SUS 304 with disc holder
Lifting :   Single acting cylinder hydraulic
Power pack :   Included with explosion proof motor
Tank clamping :   Mild steel / SS-400

Control panel :

    ◊ Box panel (in switch room)
    ◊ Speed regulator with inverter 15 HP / LG
    ◊ Potensio meter + Emergency button / Ex-proof
    ◊ On / Off push button / Ex-proof
    ◊ Safety / Limit switch for UP-DOWN
    ◊ Electric Installation ±15 mtr

HSD MIXER

Hydraulic High Speed Dissolver 30 HP

Tangerang, Banten

Type

Material

Finishing

Drive motor

Shaft

Disc

Lifting system
Power pack

:  HSD-30 HEX

:  Mild steel SS-400

:  Painted with epoxy coat

:  30 HP / Explosion Proof

:  Ø 55 mm / SUS-304

:  Toothed disc Ø 330 mm x t = 3 mm & Ø 355 mm x t = 3 mm

:  Double acting cylinder hydraulic

:  ◊ Hydraulic Gear Pump / Cap. 19 Cc / Rev

   ◊ Electric Motor 2 HP / 4 Pole / 3 PH / 380 V / 50 Hz / EXP

   ◊ Drive Coupling + Bracket Pump

   ◊ Oil Tank Cap. 50 L + Accessories

   ◊ Pressure gauge 0 – 70 bar

   ◊ Circuit manifold block

   ◊ CETOP 3 – 220 V AC

   ◊ Modular pressure relief valve / CETOP 3

   ◊ 2 Pc Flow Control Valve / Port 3/8”

Type :  HSD-30 HEX

Material :  Mild steel / SS-400

Finishing :  Painted with epoxy coat

Drive motor :  30 HP / Explosion Proof

Shaft :  Ø 55 mm / SUS-304

Disc :  30 HP / Explosion Proof

Lifting system :  Double acting cylinder hydraulic
Power pack :

   ◊ Hydraulic Gear Pump / Cap. 19 Cc / Rev

   ◊ Electric Motor 2 HP / 4 Pole / 3 PH / 380 V / 50 Hz / EXP

   ◊ Drive Coupling + Bracket Pump

   ◊ Oil Tank Cap. 50 L + Accessories

   ◊ Pressure gauge 0 – 70 bar

   ◊ Circuit manifold block

   ◊ CETOP 3 – 220 V AC

   ◊ Modular pressure relief valve / CETOP 3

   ◊ 2 Pc Flow Control Valve / Port 3/8”

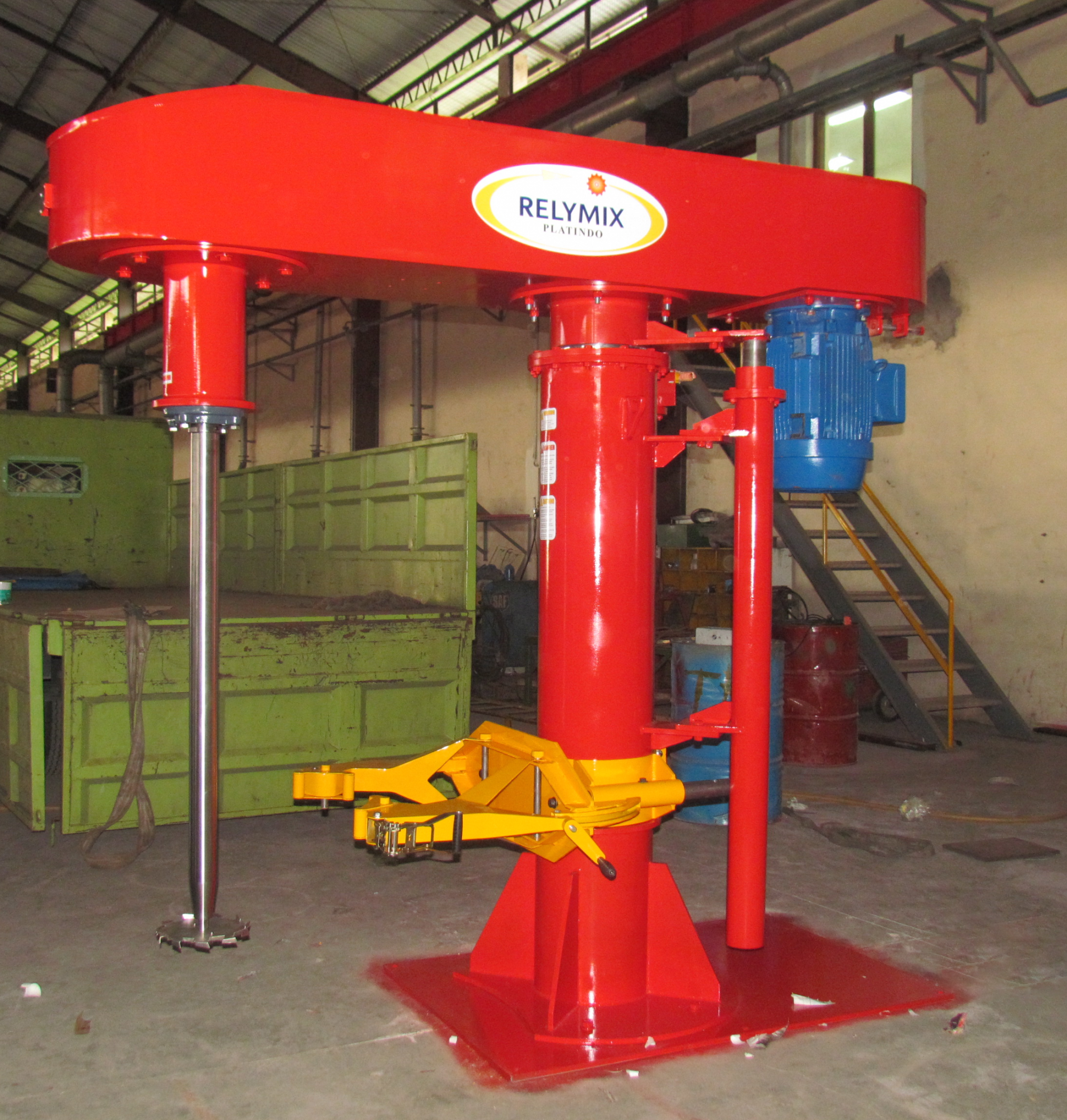

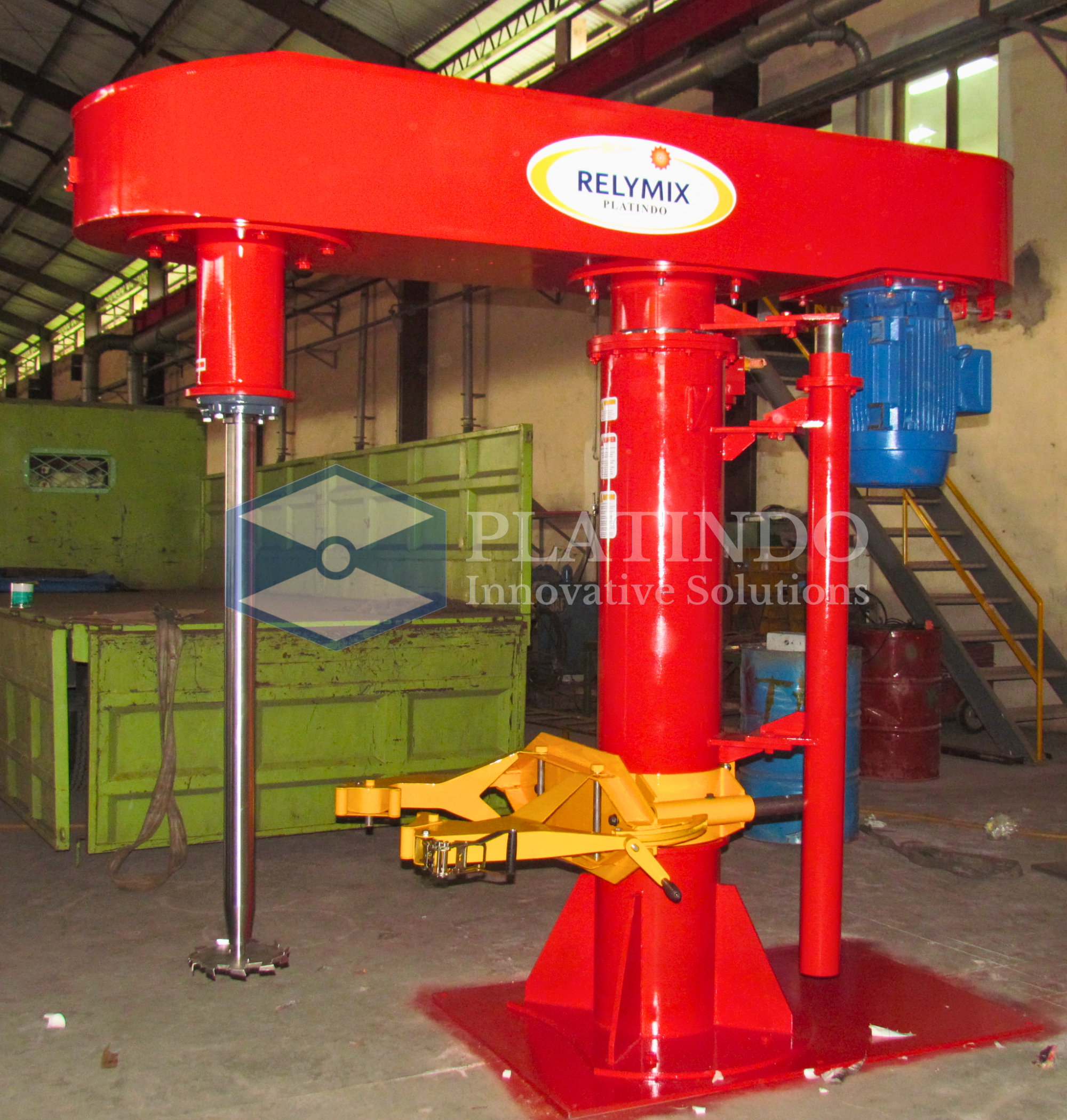

HSD MIXER

Butterfly Mixer 10 HP Double speed

Bogor, West Java

Type

Material

Finishing

Drive motor

Output speed

Shaft

Blade

Lifting

Tank Clamping

Control panel

:  BM-10 HNEX

:  Mild Steel / SS-400

:  Painting with epoxy primer & top coat

:  10 HP / Non ex-proof / Double speed / ~750 RPM & ~1450 RPM

:  ~187 and ~350 RPM

:  Ø 60 mm / SUS-304 with housing bearing system / SS-400

:  Butterfly blade Ø 600 mm / SUS 304

:  Single acting cylinder hydraulic

:  Mild Steel, SS-400 /Webbing belt, lock & adjuster by screw system

:  ◊  Box panel 900 x 600 x 200 mm
   ◊  Box Panel 400 x 300 x 160 mm

Type :  BM-10 HNEX

Material :  Mild Steel / SS-400

Finishing :  Painting with epoxy primer & top coat

Drive motor :  10 HP / Non ex-proof / Double speed / ~750 RPM & ~1450 RPM

Output speed :  ~187 and ~350 RPM

Shaft :  Ø 60 mm / SUS-304 with housing bearing system / SS-400

Blade :  Butterfly blade Ø 600 mm / SUS 304

Lifting :  Single acting cylinder hydraulic

Tank Clamping :  Mild Steel, SS-400 /Webbing belt, lock & adjuster by screw system

Control panel :

   ◊  Box panel 900 x 600 x 200 mm

   ◊  Box Panel 400 x 300 x 160 mm

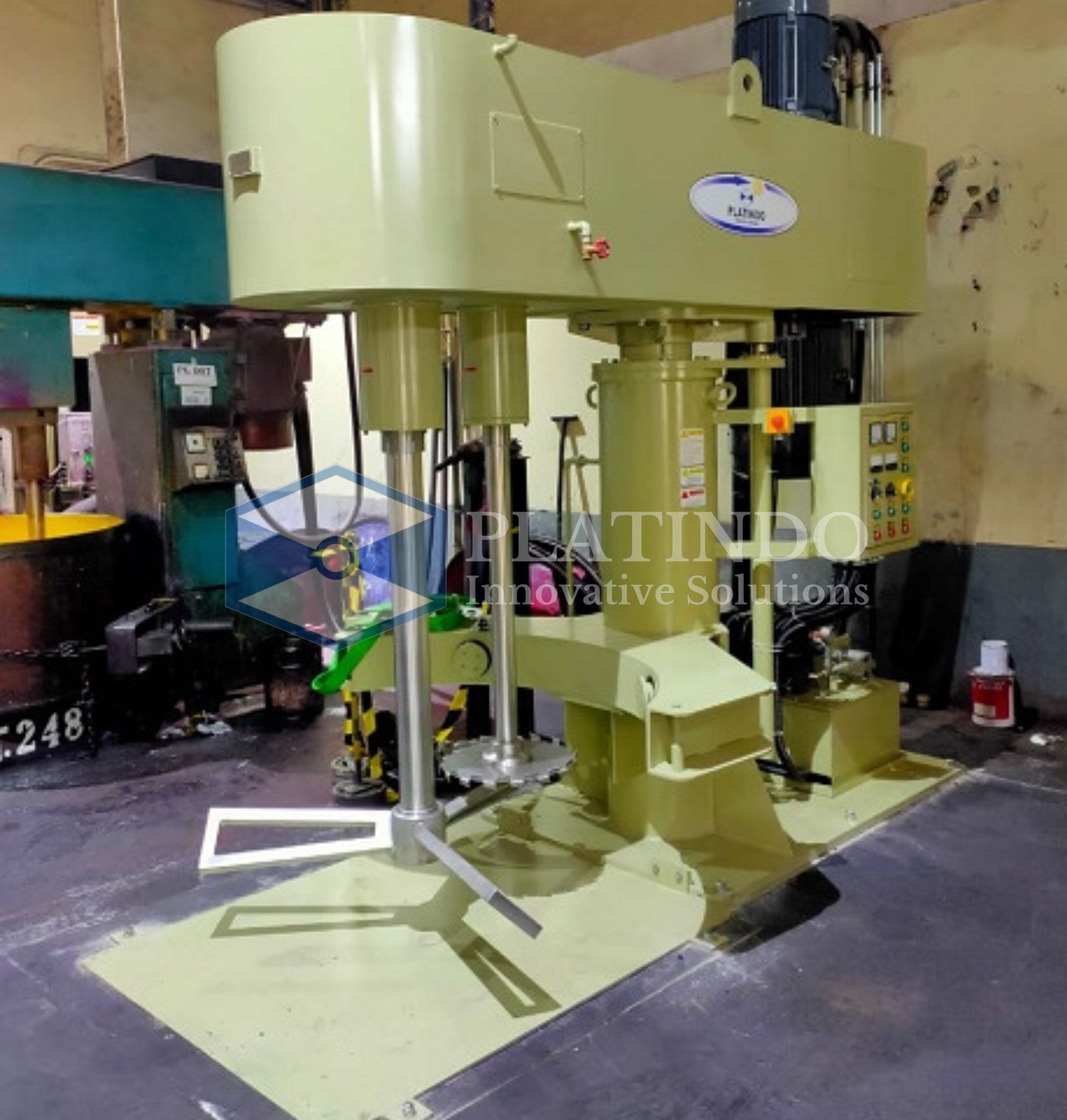

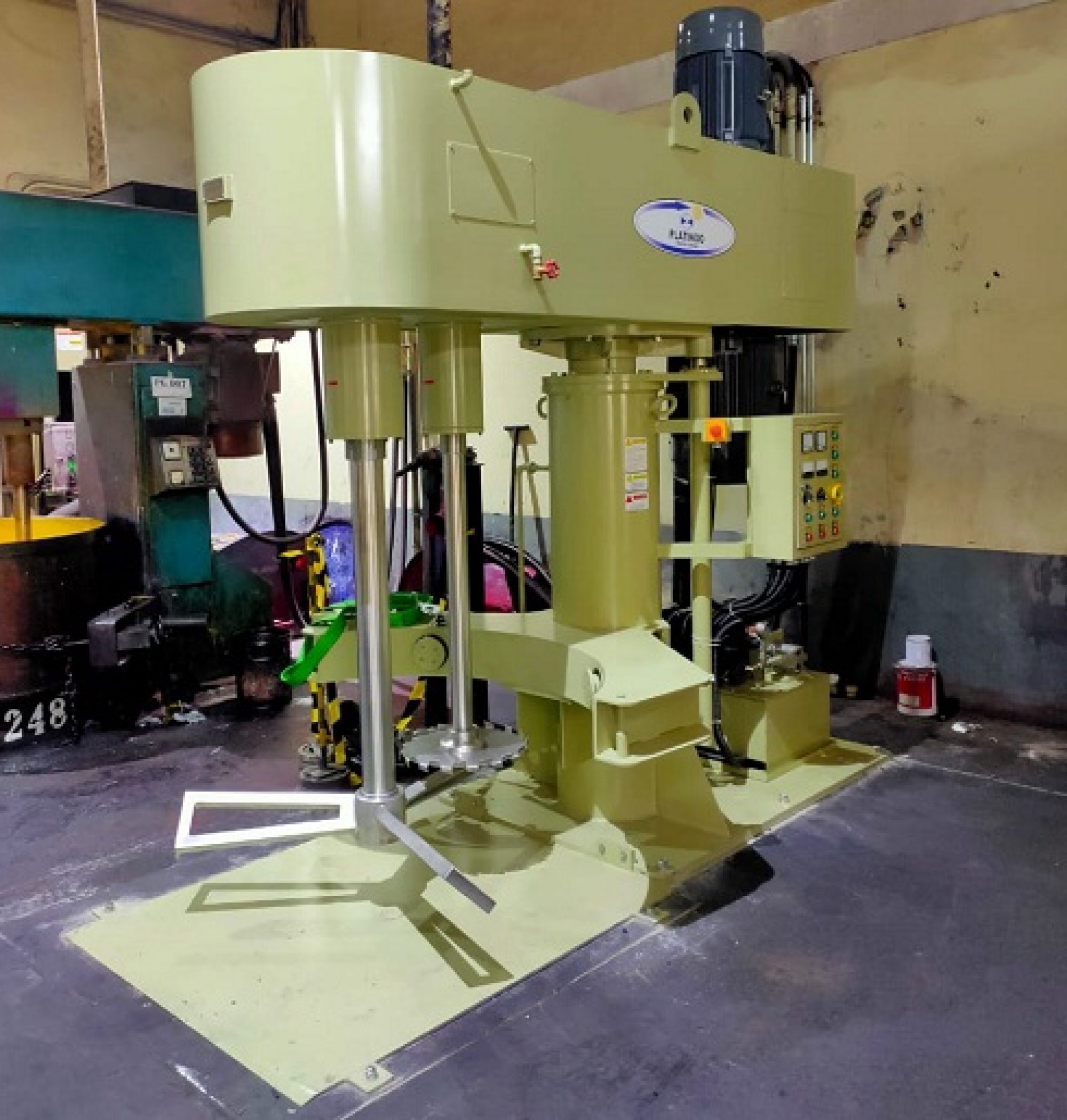

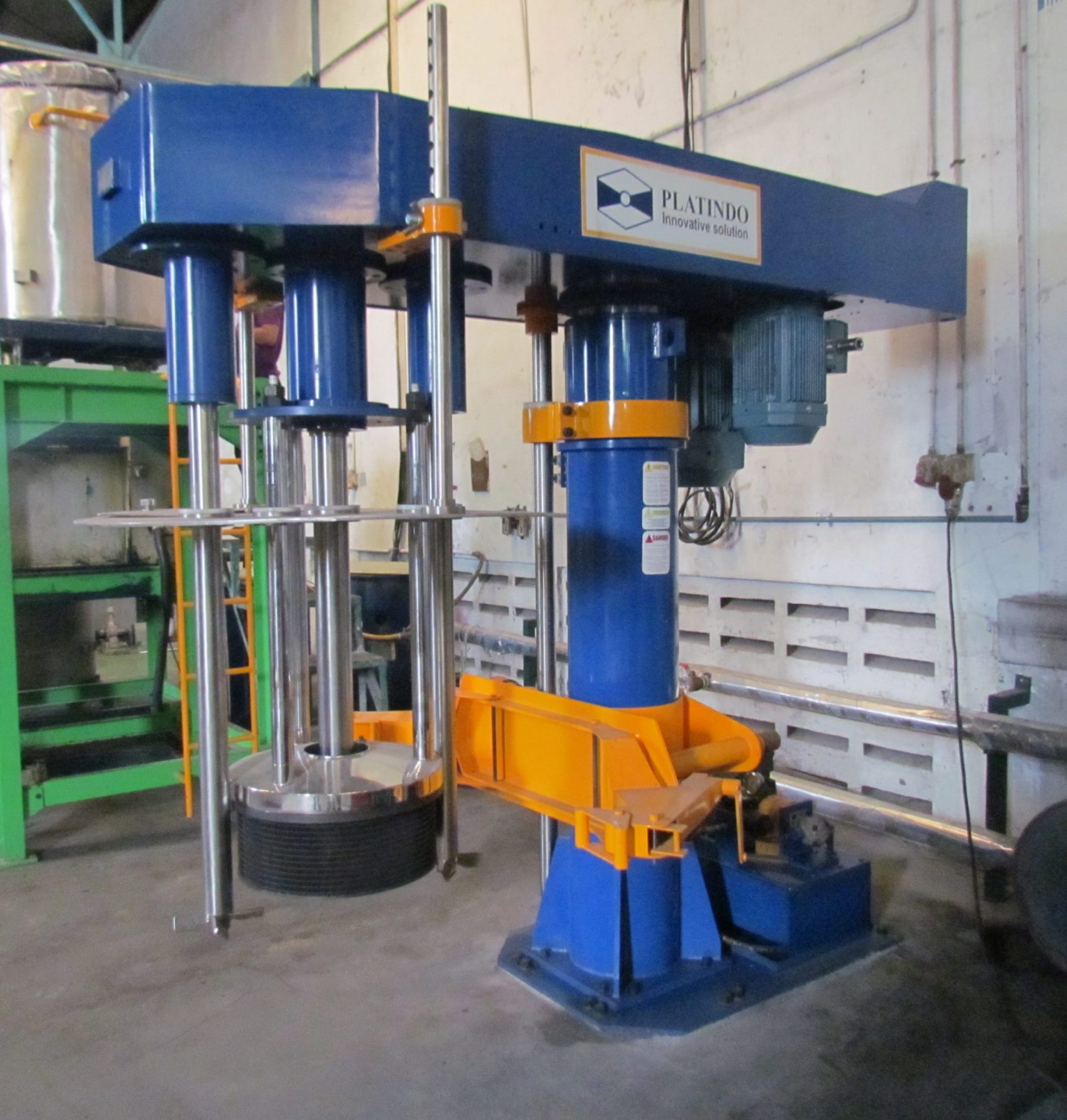

HSD MIXER

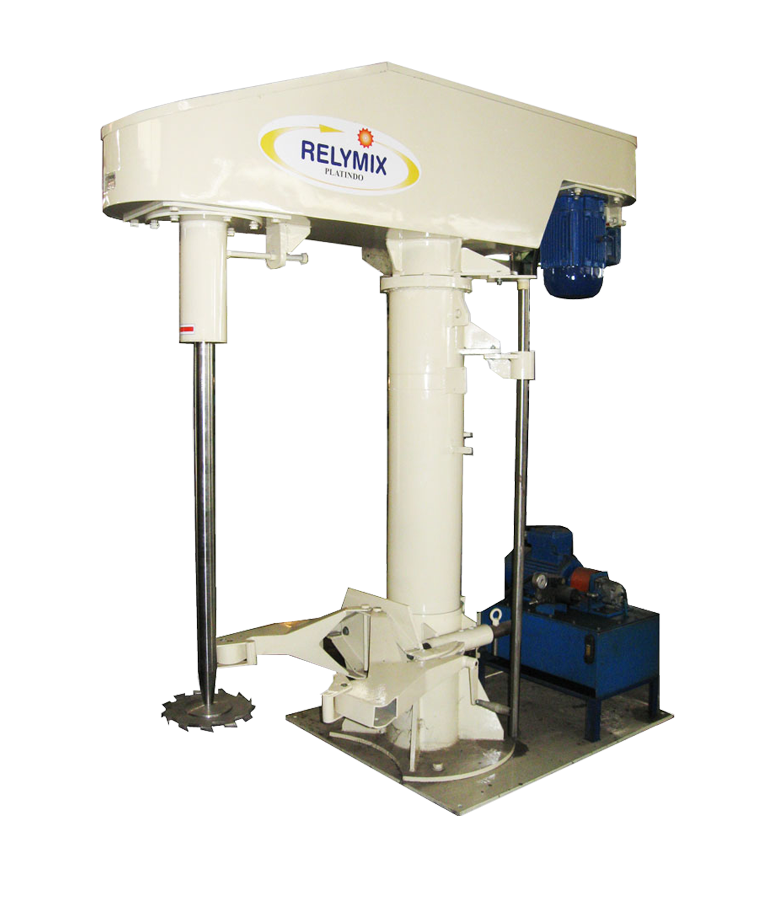

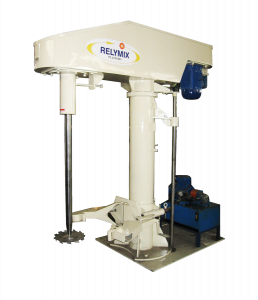

BUTTERFLY TWIN SHAFT MIXER 50 HP

Bogor, West Java

Type

Frame

Finishing

Mixer



Blade



Shaft



Lifting

Tank clamping

:  BTM-50-HNEX

:  Mild steel / SS-400

:  Painted with epoxy primer & top coat

:  1 ) High Speed Dissolver, 50 HP / ~ 1450 RPM

   2 ) Low speed (Butterfly), 50 HP / ~ 1450 RPM

:  1 ) Dissolver blade Ø 450 mm with disc holder / SUS 304

   2 ) Butterfly blade Ø 1200 mm / SUS 304

:  1 ) Ø70 mm / SUS 304 with housing bearing system / SS-400

   2 ) Ø100 mm / SUS 304 with housing bearing / SS-400

:  Single acting cylinder hydraulic

:  SS-400 /Webing belt with lock & adjuster by Hydraulic Cylinder system

Type :  BTM-50-HNEX

Frame :  Mild steel / SS-400

Finishing :  Painted with epoxy primer & top coat

Mixer :

1 ) High Speed Dissolver, 50 HP / ~ 1450 RPM

2 ) Low speed (Butterfly), 50 HP / ~ 1450 RPM

Blade :

1 ) Dissolver blade Ø 450 mm with disc holder / SUS 304

2 ) Butterfly blade Ø 1200 mm / SUS 304

Shaft :

1 ) Ø70 mm / SUS 304 with housing bearing system / SS-400

2 ) Ø100 mm / SUS 304 with housing bearing / SS-400

Lifting :  Single acting cylinder hydraulic

Tank clamping :  SS-400 /Webing belt with lock & adjuster by Hydraulic Cylinder system

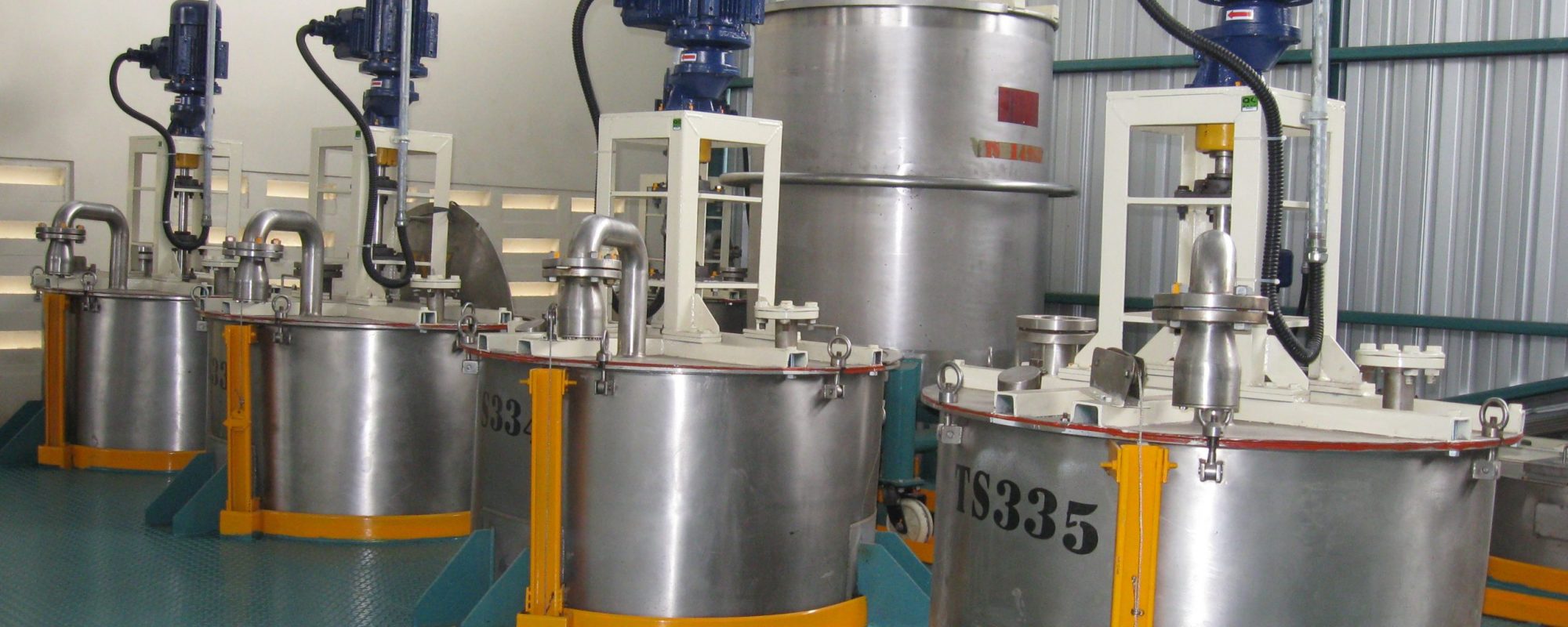

CHEMICAL MIXING TANK

MIXING AGITATOR TANK 5000 L

Bogor, West Java

Type
Dimension
Material
Finishing



Shell
Legs support

Agitator

Shaft

Blade
Accessories

:  Vertical cylinder

:  Ø 1875 x H 2225 mm x HT 2555 mm (approximate)

:  Stainless steel / SUS-316

:  Inside , polish mirror

   Outside , polish Hair Line

:  Plate

:  Bending plate / SUS-304

:  Gear motor 7,5 HP / Output speed ~ 100 RPM / 380 V

:  Stainless steel / SUS-316

:  Paddle blade / SUS-316 / 2 stage

:  ◊ Inlet , union sanitary / SUS-316

   ◊ Outlet , union sanitary / SUS-316

   ◊ Nozzle spray / SUS-316

   ◊ Top manhole

   ◊ Sight glass

   ◊ Stuffing box

   ◊ Inside ladder / knock down / SUS-304

Type                    :  Vertical cylinder
Dimension       :  Ø 1875 x H 2225 mm x HT 2555 mm (approximate)
Material            :  Stainless steel / SUS-316
Finishing          :   Inside , polish mirror

                                  Outside , polish Hair Line

Shell                   :  Plate
Legs support :  Bending plate 6 mm / SUS-304

Agitator            :  Gear motor 7,5 HP / Output speed ~ 100 RPM / 380 V

Shaft                  :  Stainless steel / SUS-316

Blade                  :  Paddle blade / SUS-316 / 2 stage

Accessories    :

   ◊ Inlet , union sanitary / SUS-316

   ◊ Outlet , union sanitary / SUS-316

   ◊ Nozzle spray / SUS-316

   ◊ Top manhole

   ◊ Sight glass

   ◊ Stuffing box

   ◊ Inside ladder / knock down / SUS-304

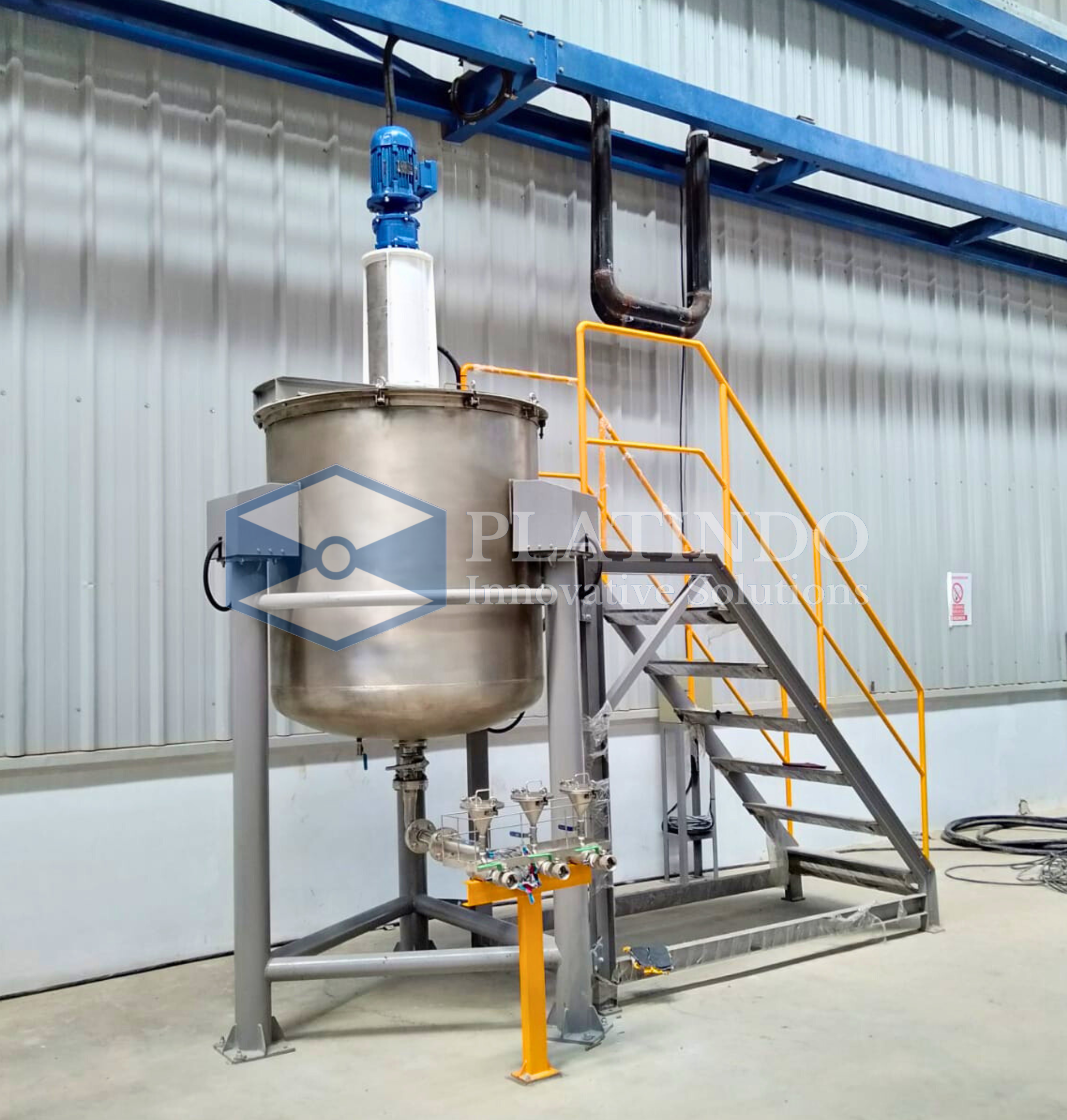

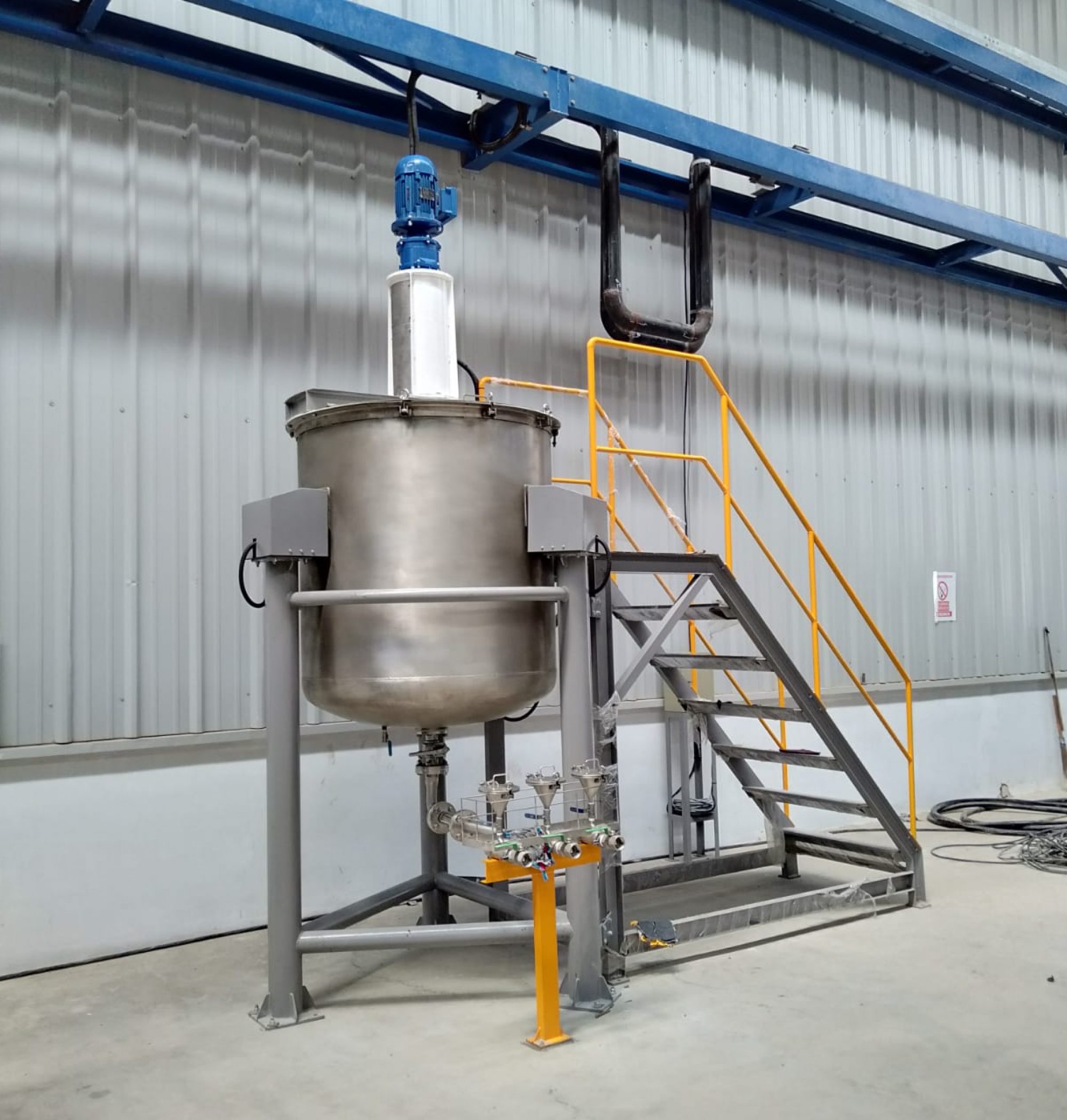

AGITATOR MIXING TANK

Mixing Tank 1200 L / SUS 304

Serang, Banten

Dimension

Material

Finishing





Shell

Top cover
Frame Agitator

Drive motor

Piping outlet
Legs support

Load Cell

Accessories

:  Ø 1180 x H 1200 mm (approximate)

:  Stainless Steel / SUS 304 (Nickel 8%)

:  – Inside , polish mirror for material SUS 304
   – Outside , polish grade #220 for material SUS 304
   – Painting with epoxy primer & top coat for SS-400

:  Plate 5 mm

:  Plate 2 mm / Swing type

:  Bending plate 5 mm / SS-400

:  Motor 3 HP / 1500 RPM / B5 / Ex-proof / WEG or Equal

:  3 outlet to machine

:  Mild Steel / SS-400

:  Atex Load Cell Loumas Italy / Ex-proof / 3 unit

:  ◊ Inlet nozzle
   ◊ Outlet nozzle
   ◊ Spare nozzle
   ◊ Stuffing box / Casing SUS-304 with gland packing
   ◊ Lifting lugs

Dimension :  Ø 1180 x H 1200 mm (approximate)

Material :  Stainless Steel / SUS 304 (Nickel 8%)

Finishing :

  – Inside , polish mirror for material SUS 304

  – Outside , polish grade #220 for material SUS 304
  – Painting with epoxy primer & top coat for material SS-400

Shell :  Plate 5 mm

Top cover :  Plate 2 mm / Swing type
Frame Agitator :  Bending plate 5 mm / SS-400

Drive motor :  Motor 3 HP / 1500 RPM / B5 / Ex-proof / WEG or Equal

Piping outlet :  3 outlet to machine
Legs support :  Mild Steel / SS-400

Load Cell :  Atex Load Cell Loumas Italy / Ex-proof / 3 unit

Accessories :

   ◊ Inlet nozzle

   ◊ Outlet nozzle
   ◊ Spare nozzle
   ◊ Stuffing box / Casing SUS-304 with gland packing

   ◊ Lifting lugs

CHEMICAL REACTOR TANK

REACTOR TANK 1000 L with FIXED MIXER 1 HP

Banten, Tangerang

1.  REACTOR TANK 1000 L

Type

Capacity

Dimension

Material

Finishing



Jacket tank

Insulation





Condenser



Agitator

Gearbox

Platform



Accessories

:  Cylinder / dished end / Platform mounted

:  1000 L

:  Ø 1000 x H 1500 mm (Approximate)

:  Stainless steel SUS-316 / Teflon Lining

:  Inside, polish mirror

   Outside, Pickling / Chemical cleaning

:  Plate 3 mm / SUS-304

:  Rock wool

   Frame / flat bar / SS-400

   Cover / plate / SS-400

:  Casing / Pipe / SUS-316

   Pipe Tubing  / SUS-316

:  Motor 1 HP / 1500 RPM / 380 V / Explosion proof

:  Gear box 5 HP / output Speed ~ 100 RPM

:  L 2000 x W 2000 x H 2900 mm ( approximate) / Mild Steel /         SS-400

:  ◊ Outlet, bottom Valve for product

   ◊ Inlet – outlet Ball Valve / SUS-304 for jacket

   ◊ Inlet nozzle, Flange

   ◊ Spare nozzle, Flange

   ◊ Nozzle thread for Pressure Indicator

   ◊ Nozzle thread for Thermo Indicator

   ◊ Venting  / SUS-316

   ◊ Manhole

   ◊ Sight glass & light glass

   ◊ Stuffing box / SUS-316

   ◊ Lifting lug

2.  FIXED MIXER 1 HP / Ex-Proof

Drive motor
Voltage
Shaft
Blade
Shaft connection

Frame

Base frame

Frame motor

Finishing

Accessories

:  Cylinder / dished end / Platform mounted

:  380 V, 3 phase, 50 Hz

:  SUS-316

:  Trifoil blade / SUS-316

:  Moment coupling SUS-316

:  SS-400

:  SS-400

:  Plate

:  Painting with epoxy top coat

:  Adjuster foots / galvanize SUS-316

1.  REACTOR TANK 1000 L

Type :  Cylinder / dished end / Platform mounted

Capacity :  1000 L

Dimension  : Ø 1000 x H 1500 mm (Approximate)

Material       : Stainless steel SUS-316 / Teflon Lining

Finishing     : Inside, polish mirror

                          Outside, Pickling / Chemical cleaning

Jacket tank : Plate 3 mm / SUS-304

Insulation     :  Rock wool

                             Frame / flat bar / SS-400

                             Cover / plate / SS-400

Condenser  : Casing / Pipe / SUS-316

                             Pipe Tubing  / SUS-316

Agitator :  Motor 1 HP / 1500 RPM / 380 V / Explosion proof

Gearbox :  Gear box 5 HP / output Speed ~ 100 RPM

Platform :  L 2000 x W 2000 x H 2900 mm ( approximate) / Mild Steel / SS-400

Accessories :

   ◊ Outlet, bottom Valve for product

   ◊ Inlet – outlet Ball Valve / SUS-304 for jacket

   ◊ Inlet nozzle, Flange

   ◊ Spare nozzle, Flange

   ◊ Nozzle thread for Pressure Indicator

   ◊ Nozzle thread for Thermo Indicator

   ◊ Venting  / SUS-316

   ◊ Manhole

   ◊ Sight glass & light glass

   ◊ Stuffing box / SUS-316

   ◊ Lifting lug

2.  FIXED MIXER 1 HP / Ex-Proof

Drive motor :  Cylinder / dished end / Platform mounted
Voltage :  380 V, 3 phase, 50 Hz
Shaft :  SUS-316
Blade :  Trifoil blade / SUS-316
Shaft connection :  Moment coupling SUS-316

Frame :  SS-400

Base frame :  SS-400

Frame motor :  Painting with epoxy top coat Finishing

WASHING TANK

MIXING SAGO WASHING TANK

Sorong, West Papua

Capacity

Dimension
Type
Material
Finishing



Reinforce
Tank baffle
Roof frame
Top & Bottom ring
Legs
Support
Bracing
Base plate
Outer ladder
Handrail
Catwalk
Accessories

:  120 M3

:  Ø 4960 x H 8000 x HT 12000 mm (approximate)

:  Vertical Cylinder with Conical Bottom

:  Stainless steel / SUS-304

:  Inside – outside, welding line & Chemical cleaning for material SUS 304

   Painting with epoxy primer & top coat for material Mild Steel / SS-400

:  Plate / SUS-304
:  Plate / SUS-304
:  Angle bar  / SS-400
:  Angle bar / SS-400
:  H-beam / SS-400
:  WF / SS-400
:  WF / SS-400
:  Plate / SS-400
:  Pipe CS , Angle bar & guard (1 set) – for 3 units tank
:  Pipe CS
:  Channel UNP or WF with hand railing / SS-400
:  ◊ Outlet, Ball valve flange manual operation

   ◊ Side manhole

   ◊ Bolt, nut, & washer / contact product SUS-304

Capacity                     :  120 M3

Dimension                 :  Ø 4960 x H 8000 x HT 12000 mm (approximate)

Type                              :  Vertical Cylinder with Conical Bottom

Material                       :  Stainless steel / SUS-304
Finishing                     :  Inside – outside, welding line & Chemical cleaning for material SUS 304

Painting with epoxy primer & top coat for material Mild Steel / SS-400

Reinforce                    :  Plate / SUS-304
Tank baffle                 :  Plate / SUS-304
Roof frame                 :  Angle bar / SS-400
Top & Bottom ring :  Angle bar / SS-400
Legs                               :  H-beam / SS-400
Support                        :  WF / SS-400
Bracing                         :  WF / SS-400
Base plate                   :  Plate / SS-400
Outer ladder              :  Pipe CS , Angle bar & guard (1 set) – for 3 units tank

Handrail                       :  Pipe CS
Catwalk                        :  Channel UNP or WF with hand railing / SS-400

 Accessories              :

◊ Outlet, Ball valve flange manual operation

◊ Side manhole

◊ Bolt, nut, & washer / contact product SUS-304

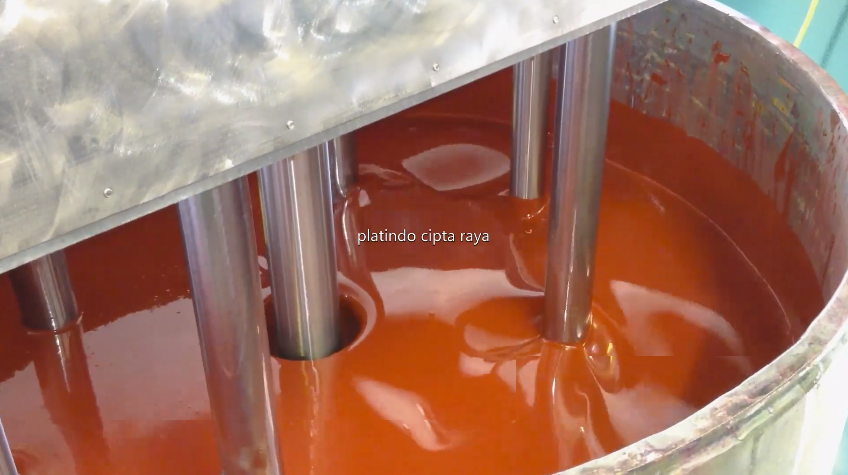

WET GRINDING MILL

Basket Mill 37 KW (50 HP)

Tangerang, Banten

Frame

Material

Finishing

Agitator

  Drive motor

  Transmission

  Chamber









  Shaft

  Bearing

Direction Stir

  Drive motor

  Transmission

  Shaft

  Blade

  Bearing

Lifting

Accessories

:  Structure with Balancer SS-400

:  Mild Steel / SS-400

:  Painted with epoxy primer & top coat



:  37 KW ( 50 HP) / 1450 Rpm / Explosion Proof

:  Pulley system

:  – Cooling pole / 2 pc
   – Sensor pole / 1 pc

   – Central cooling pipe

   – Cooling base plate
   – Cooling cover

:  Ø 80 mm / AISI 431 or equal M300 Buhler

:  Mild steel / SS-400



:  7,5 KW (10 HP)/1450 RPM / Explosion Proof

:  Pulley system

:  Ø 65 mm / SUS-304 / 2 pcs

:  Paddle blade / SUS-304 / 2 pcs / 1 stage

:  Mild steel / SS-400 / 2 pcs

:  Single acting cylinder hydraulic

:  ◊  Manual Tank Clamping with Spanset / SS-400
   ◊  Tank Cover / Plate 8 mm / SUS-304
   ◊  Guiden cover Ø 40 mm / SUS-304

   ◊  Control panel box

Frame :  Structure with Balancer SS-400

Material :  Mild Steel / SS-400

Finishing :  Painted with epoxy primer & top coat

Agitator

  Drive motor :  37 KW ( 50 HP) / 1450 Rpm / Explosion Proof

  Speed transmission :  Pulley system

  Chamber :

 – Cooling pole / 2 pc

 – Sensor pole / 1 pc

 – Central cooling pipe

 – Cooling base plate
 – Cooling cover

  Shaft :  Ø 80 mm / AISI 431 or equal M300 Buhler

  Housing bearing :  Mild steel / SS-400

Left & Right Stir

  Drive motor :  7,5 KW (10 HP)/1450 RPM / Explosion Proof

  Speed transmission :  Pulley system

  Shaft :  Ø 65 mm / SUS-304 / 2 pcs

  Blade :  Paddle blade / SUS-304 / 2 pcs / 1 stage

  Housing bearing :  Mild steel / SS-400 / 2 pcs

Lifting :  Single acting cylinder hydraulic

Accessories :

   ◊  Manual Tank Clamping with Spanset / SS-400

   ◊  Tank Cover / Plate 8 mm / SUS-304
   ◊  Guiden cover Ø 40 mm / SUS-304

   ◊  Control panel box

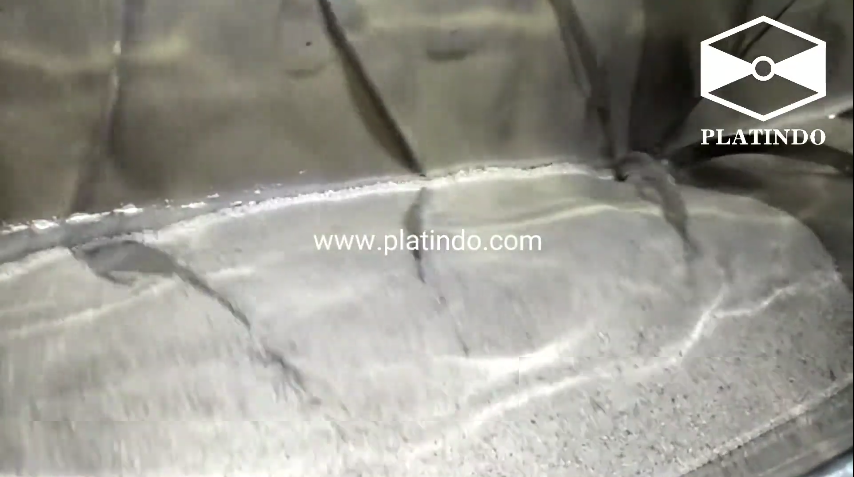

POWDER MIXER

Industrial Ribbon Mixer

Gambir, Jakarta

Type

Capacity

Dimension

Material



Finishing



Container

Material

Dimension

Accessories





Mixer

Driver

Voltage

Transmission

Shaft

Blade

Scraper

Frame

Material

Moveable
Panel control

:   Single rotation

:   100 Kg

:   L 1600 x W 600 x H 1350 mm (approximate)

:   Contact product, stainless steel / SUS-316
    Non-contact product, stainless steel / SUS-304

:   Inside, polish mirror
    Outside, polish hairline



:   Stainless steel / SUS-316

:   Ø 460 x L 800 x H 380 mm (approximate)

:   Gasket, Cover handle & cover lock, Inlet product c/w cover, Outlet product c/w magnetic, metal trap / swing type, Sight glass c/w wiper



:   Worm gear motor 3 HP / end speed ~25 Rpm

:   380 V / 3 Phase / 50 Hz / non explosion proof

:   Chain coupling

:   Solid shaft / SUS-316

:   Ribbon blade, Plate 4 mm c/w holder rod / SUS-316

:   PTFE plate



:   Stainless steel / SUS-304

:   Caster wheel Ø 4”/ medium duty / fix & swivel-brake

:   ◊ Box panel / standard / 250 x 350 x 150 mm

    ◊ DOL motor starter 2 HP
    ◊ MCB
    ◊ Push button ON-OFF & EMG Stop
    ◊ Indicator lamp
    ◊ Stecker
    ◊ Cable Control
    ◊ Cable Motor
    ◊ Flexible conduit 3⁄4” + connector
    ◊ Accessories (cable duct, cable gland, ties, skun, etc.)

Type :  Single Rotation

Capacity :  100 Kg
Dimension :  L 1600 x W 600 x H 1350 mm (approximate)
Material :

– Contact product, stainless steel / SUS-316
– Non-contact product, stainless steel / SUS-304
Finishing :

– Inside, polish mirror
– Outside, polish hairline

Container

Material :  Stainless steel / SUS-316
Dimension :  Ø 460 x L 800 x H 380 mm (approximate)
Accessories :

Gasket / PTFE, Cover handle & cover lock, Inlet product c/w cover, Outlet product c/w, magnetic metal trap / swing type, Sight glass c/w wiper.
Mixer
Driver :  Worm gear motor 3 HP / end speed ~25 Rpm
Voltage :  380 V / 3 Phase / 50 Hz / non explosion proof
Transmission :  Chain coupling
Shaft :  Solid shaft / SUS-316

Blade :  Ribbon blade, Plate 4 mm c/w holder rod / SUS-316
Scrapper :  PTFE plate
Frame
Material :  Stainless steel / SUS-304
Moveable : Caster wheel Ø 4”/ medium duty / fix & swivel-brake
Panel control :
  ◊ Box panel / standard / 250 x 350 x 150 mm
  ◊ Direct On-Line motor starter 2 HP
  ◊ MCB
  ◊ Push button ON-OFF & EMG Stop
  ◊ Indicator lamp
  ◊ Stecker
  ◊ Cable Control
  ◊ Cable Motor
  ◊ Flexible conduit 3⁄4” + connector
  ◊ Accessories (cable duct, cable gland, ties, skun, etc.)

HSD MIXER

Chain lifting hsd Mixer 30 HP

Tangerang, Banten

Type
Material
Finishing
Drive motor
Voltage
Shaft
Blade
Lifting System
Motor Chain hoist
Frame motor hoist
Control panel

:   Low Mixer-30-LNEX

:   Mild Steel / SS-400
:   Painted with epoxy top coat
:   Helical Gear motor 30 HP / ~ 300 RPM / Non ex-proof
:   380 V / 3 phase / 50 Hz
:   Ø 21⁄2 “ / SUS 304
:   Paddle blade / SUS 304 / 2 stage

:   Manual Chain hoist / Elephant / Chain L: 6 mtr
:   Motor 1 HP / 1500 RPM / Non ex-proof
:   Angle bar 50x50mm
:   ◊  Box panel
    ◊  DOL 1 HP for Lifting system
    ◊  Speed regulator with inverter 30 HP
    ◊  Potensio meter + Emergency button
    ◊  On / Off push button
    ◊  Safety / Limit switch
    ◊  Cable control ±15 mtr

Type :  Low Mixer-30-LNEX

Material :  Mild Steel / SS-400
Finishing :  Painted with epoxy top coat
Drive motor :  Helical Gear motor 30 HP / ~ 300 RPM / Non ex-proof
Voltage :  380 V / 3 phase / 50 Hz
Shaft :  Ø 21⁄2 “ / SUS 304
Blade :  Paddle blade / SUS 304 / 2 stage
Lifting System :  Manual Chain hoist / Elephant / Chain L: 6 mtr
Motor Chain hoist :  Motor 1 HP / 1500 RPM / Non ex-proof
Frame motor hoist :  Angle bar 50x50mm
Control panel :

    ◊  Box panel
    ◊  DOL 1 HP for Lifting system
    ◊  Speed regulator with inverter 30 HP / LG
    ◊  Potensio meter + Emergency button
    ◊  On / Off push button
    ◊  Safety / Limit switch
    ◊  Cable control ±15 mtr

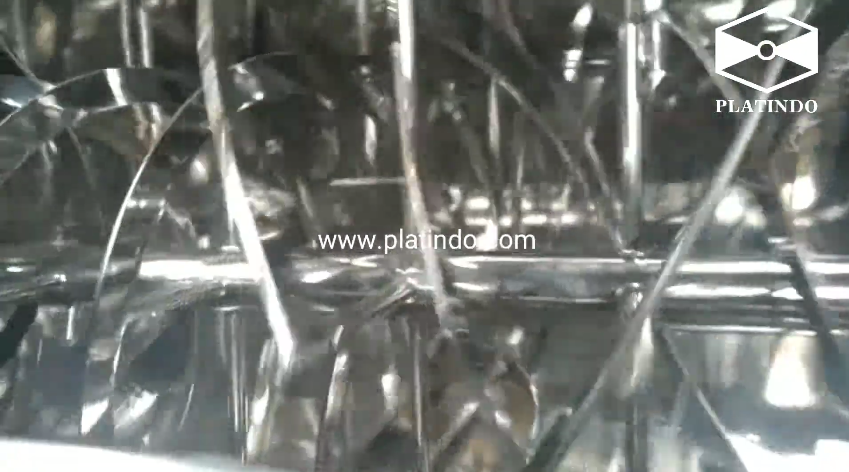

POWDER MIXER

Ribbon blender 1100 L / sus-304

South Jakarta, DKI Jakarta

Type
Dimension
Finishing



Container







Blade

Shaft



Frame

Driver







Control panel











Accessories

:   Single Rotation

:   Ø 800 x L1600 mm (approximate)

:   Outside polish, grade #220
    Inside polish, Mirror

:   Bottom wall, Stainless steel / SUS-304
    Side wall, Stainless steel / SUS-304
    End plate, Stainless steel / SUS-304
    Top cover, Stainless steel / SUS-304

:   Double helical ribbon / SUS-304
:   Ø 80 mm / SUS-304 with packing gland, stuffing box (Exclude puging line)

:   Carbon Steel / Painting with epoxy top coat

:   Motor 11 KW /1500 RPM /3 phase / 380 V / 50 Hz / Non ex-proof
With Helical Gear reducer /11 KW / shaft speed ~ 34 RPM (Exclude purging line)

:   – Box Panel
    – Star Delta 11 KW
    – Analogue timer
    – Limit switch for cover
    – Push button and Emergency stop
    – Cable control ±20 mtr

:  ◊  Product outlet nozzle / SUS-304
   ◊  Product inlet nozzle / SUS-304
   ◊  Dust collector nozzle / SUS-304



Type :   Single Rotation
Dimension :   Ø 800 x L1600 mm (approximate)

Finishing :

 – Outside polish, grade #220

 – Inside polish, Mirror

Container :

 – Bottom wall, Stainless steel / SUS-304

 – Side wall, Stainless steel / SUS-304
 – End plate, Stainless steel / SUS-304
 – Top cover, Stainless steel / SUS-304

Blade :   Double helical ribbon / SUS-304

Shaft :    Ø 80 mm / SUS-304 with packing gland, stuffing box

Frame :   Carbon Steel / Painting with epoxy top coat

Driver :   Motor 11 KW /1500 RPM /3 phase / 380 V / 50 Hz / Non ex-proof

With Helical Gear reducer /11 KW /shaft speed ~ 34 RPM (Exclude purging line)

Control panel :

    – Box Panel

    – Star Delta 11 KW
    – Analogue timer
    – Limit switch for cover
    – Push button and Emergency stop
    – Cable control ±20 mtr

Accessories :

    ◊  Product outlet nozzle / SUS-304

    ◊  Product inlet nozzle / SUS 304
    ◊  Dust collector nozzle / SUS 304

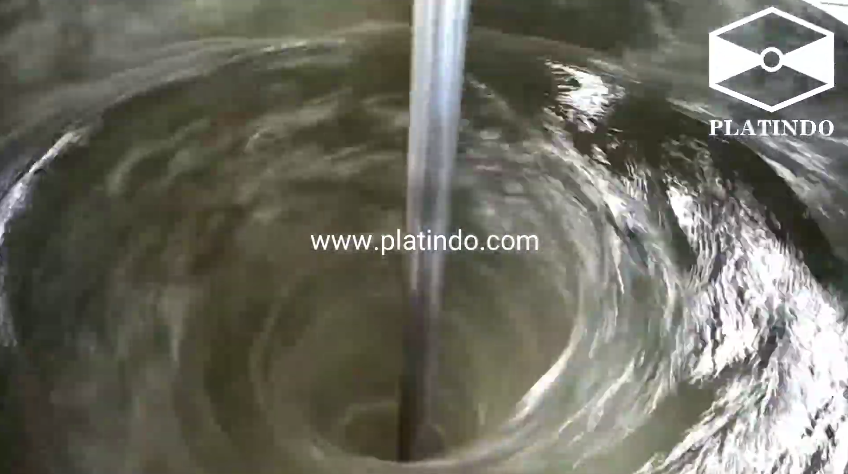

HSD MIXER

pendrolic mixer 1 hp

South Jakarta, DKI Jakarta

Type
Drive motor
Voltage
Speed regulator
Shaft
Blade
Lifting
Frame
Control Panel

:   HSD-2-EP

:   Motor 2 HP/ 1500 RPM / explosion Proof

:   380 V, 3 phase, 50 Hz

:   0~1500 RPM with inverter 2 HP

:   Ø 11⁄4” / SUS 304 with housing bearing

:   Dissolver blade Ø 200 mm/ SUS-304

:   Manual with balancer mechanism

:   SS-400 / Painted

:   ◊  Box Panel

    ◊  Inverter 2 HP

    ◊  Potensio meter

    ◊  Emergency Stop

Type :   HSD-2-EP
Drive motor :   Motor 2 HP/ 1500 RPM / explosion Proof
Voltage :   380 V, 3 phase, 50 Hz
Speed regulator :   0~1500 RPM with inverter 2 HP
Shaft :   Ø 11⁄4” / SUS 304 with housing bearing
Blade :   Dissolver blade Ø 200 mm/ SUS-304
Lifting :   Manual with balancer mechanism
Frame :   SS-400 / Painted
Control Panel :

  ◊  Box Panel

  ◊  Inverter 2 HP

  ◊  Potensio meter

  ◊  Emergency Stop
